Eaton Flush-mounted flat distributor

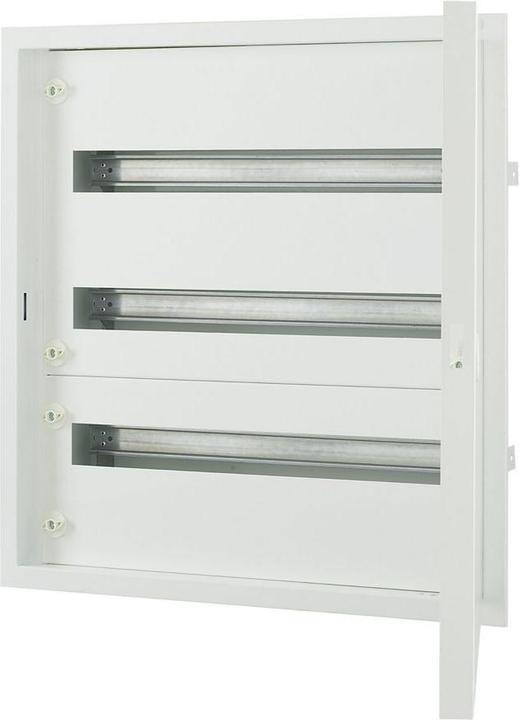

Flush-mounted flat distribution board BF-U-./..-A complete, white RAL 9016, with 24 compartments per row and 3 rows. The dimensions are height 620 mm, width 588 mm, and depth 136 mm. The board includes a door, front panels, a DIN rail frame, and N/PE connections.

The housing has a closed design with a back panel that can be used as a mounting layer. It features 2 cable entry flanges for flat distributors with a width of 24HP at the top and pre-mounted cable entry openings at the bottom. The connections are pre-mounted on the housing, preventing the loss of compartments.

The wall shelf includes a door frame, and the back panel can also serve as a mounting layer. It has easily breakable cable entry openings, a depth of 127 mm, and 4 side mounting tabs. A steel sheet door with a rotary bolt lock is included, and options for a steel sheet door with extended depth (for the installation of RMQ components) as well as a steel sheet door with a viewing window are available as accessories.

The removable DIN rail frame accommodates 45 mm rail-mounted devices with a DIN rail spacing of 150 mm. An Eaton circuit breaker can be integrated with an installation kit, and the installation of a universal mounting plate is possible with an installation kit for the flush-mounted housing. The metal front panel is secured to the housing using a special lock.
