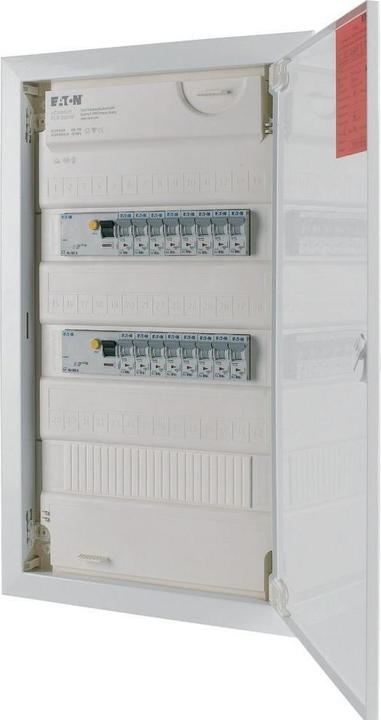

Eaton EATO flush-mounted small distribution board

Eaton small distribution board KLV36UPPF-2PXF-16PLI

Manufacturer: Eaton
Designation: Small distribution board, flush-mounted, 3-row
Type: KLV36UPPF-2PXF-16PLI
Mounting type: Flush-mounted
Number of phases: 3
Fuse protection: Circuit-breaker / combined RCD/circuit-breaker
Total number of groups: 16
Number of direct groups: 2
Number of lighting groups: 2
Number of groups behind the residual current circuit breaker: 16
Number of residual current circuit breakers 30 mA: 2
Fuse protection main switch as feeder: No
Main switch rated current: 0 A
Fuse protection 1x RCD as feeder: Yes
Main switch as feeder, sub-distributor: Yes
As feeder, sub-distribution to 1x/2x RCD + unprotected outlets: Yes
Main switch as feeder, sub-distribution to 2x RCD: Yes
Fuse protection dual RCD (2x RCD as feeder): Yes
Number of free module slots for devices: 16
Suitable for data: No
Stove connection group: Without cooker connection group
Suitable as power group: No
With socket outlet: No
With bell transformer: No
Overvoltage protection: No
With counter: No
Housing material: Plastic
Protection class (IP): IP30
Height: 590 mm
Width: 360 mm
Width in units: 12
Depth: 100 mm
Installation depth: 0 mm
Mounting option: Yes
With transparent cover: No
Lockable: No

Further details: Pre-wired and tested flush-mounted small distribution board KLV, with 2x PXF miniature circuit-breakers and 16x PLI miniature circuit-breakers for all outgoing circuits. Protection class II, front cover can be sealed. Door latch optionally replaceable with safety lock. Extensive range of accessories. Level indicator for quick and clean installation.

Standards: Combination in accordance with IEC/EN 60670-24, housing in accordance with DIN 43871, IEC/EN 62208, EN61439-3.
