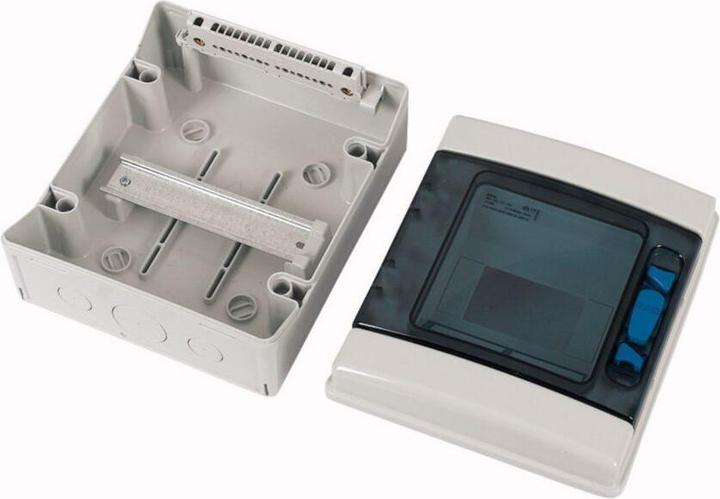

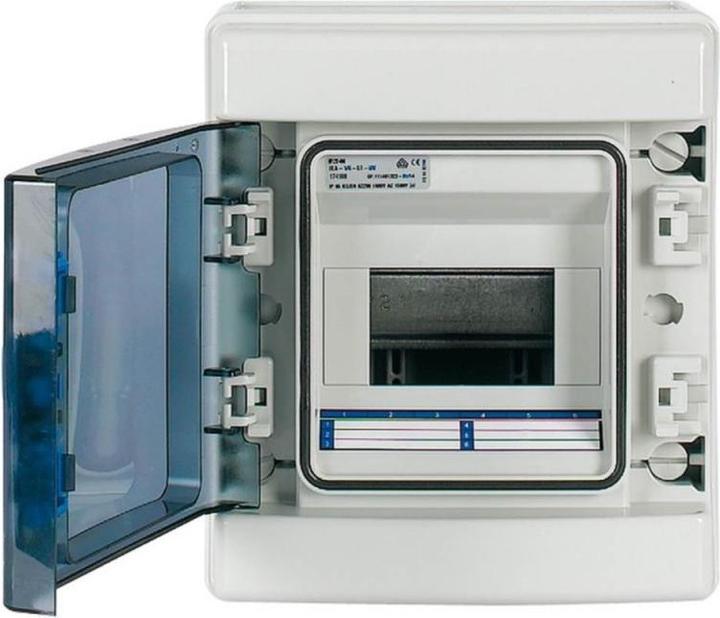

Eaton EATO AP-Small distribution board

The EATO AP small distribution board from Eaton is a robust and versatile solution for the installation of electrical distributors. It is specifically designed for use in damp environments and offers an IP65 protection rating, making it resistant to dust and water. The small distribution board is made of high-quality, UV-resistant polycarbonate and meets the requirements of the IEC/EN 61439-3 and VDE 0660-600-3 standards. With six division units and a mounting depth of 70 mm, it is ideal for the installation of switching and protective devices. The integrated module compensation allows for adaptation to various device widths, while the metric cable knockouts ensure easy installation. The small distribution board is suitable for wall mounting and is equipped with a transparent door that enables easy visual inspection of the installed components. The door can be hinged on either the right or left side and is lockable, providing additional security.

• CNC foamed seal for IP65 protection rating
• Integrated module compensation for different device widths
• Finger-safe neutral and protective conductor terminal IP2X
• Door hinge can be changed on-site
• Sealable quick locks for additional security.
