Dosen Fix Drilling jig red with centring disc 68mm and centring star 65mm

Dosenfix drilling device

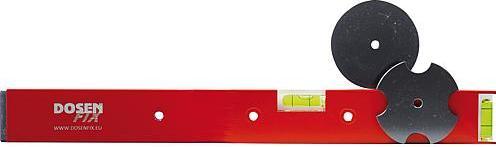

This drilling device features a spirit level in a drawn light metal profile measuring 40x20mm, finished in red lacquer. It includes a firmly glued, barrel-shaped horizontal and vertical level made of unbreakable acrylic glass, with an accuracy in normal position of 0.5mm/m (0.029°). A locking pin ensures an exact center distance. The device comes with four cased drill bushes (Ø4 and Ø6.5mm) for direct drilling of up to five cavity wall boxes at a distance of 71mm, eliminating the need for measuring and marking. It also includes a centering drill, a centering disc (Ø68mm), and a centering star (Ø65mm) for extending the drill row with an existing drill hole or inserted box.

Technical data

EAN: 7106587380818

Product group: Tools and accessories

Manufacturer: Dosen FIX

Supplier article number: 0045

Colour: Red

Length: 370mm

Description: Dosenfix drilling device.
