Dormer Thread milling cutter Nominal Ø 3.2 mm M4 Pitch 0.7 mm HM Alcrona Pro

Ratings
Delivered between Wed, 21.5. and Fri, 23.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

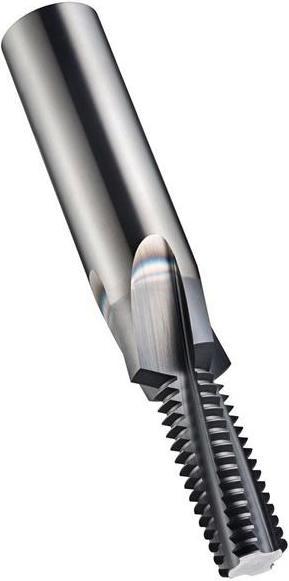

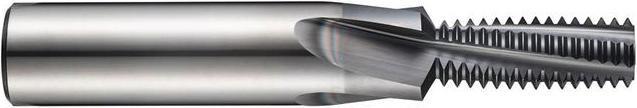

The thread milling cutter with a nominal diameter of 3.2 mm M4 and a pitch of 0.7 mm made of HM Alcrona Pro is a high-precision tool specifically designed for machining ISO metric threads. With a cutting diameter of 3.2 mm and a cylindrical shank of 6 mm according to DIN 6535 HA, this thread milling cutter offers optimal performance when milling internal and external threads in various materials. The Alcrona Pro coating provides enhanced wear resistance and durability, while the 10° helix angle increases cutting efficiency. This tool is ideal for applications in steel, cast steel, stainless steel, cast iron, and non-ferrous metals, allowing for thread milling up to a maximum length of 8.4 mm.

  • High-quality HM Alcrona Pro coating for increased durability
  • Suitable for ISO metric threads ≥ M4 with a pitch of 0.70 mm
  • Optimized 10° helix angle for efficient milling
  • Versatile use in various materials, including stainless steel and cast iron.

Key specifications

tap type
Screw taps
thread type
M4
Set
Set
Item number
22416982

General information

Manufacturer
Dormer
Category
Threading taps + Threading dies
Manufacturer no.
J2003.2X.7
Release date
16.9.2022

Tap Properties

tap type
Screw taps
thread type
M4
Internal diameter
3.20 mm
Outside diameter
3.20 mm
gradient
0.70 mm
DIN standard
DIN 6535-HA
Set
Set
Direction of rotation
Right + Left + Right

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 x Thread milling cutter nominal Ø 3.2 mm M4 pitch 0.7 mm carbide Alcrona Pro

Product dimensions

Length
57 mm
Diameter
3.20 mm

30-day right of return
24 Months Warranty (Bring-in)
