Dormer Thread forming taps DIN 2174 4 Form C 2 - 3.5 HSS-E TiN 6HX

Ratings
BrandMore from Dormer
Delivered between Thu, 29.1. and Wed, 4.2.
More than 10 pieces in stock at supplier
free shipping

Product details

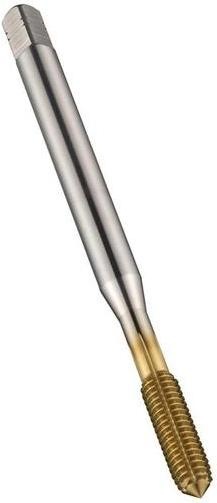

The Dormer DIN 2174 4 Form C 2 - 3.5 HSS-E TiN 6HX thread cutter is a high-precision tool specifically designed for machining ISO metric threads. With a thread length of 12 mm and a shank diameter of 4.5 mm, this thread cutter meets the requirements of the DIN 2174 standard. The TiN coating provides improved wear resistance and a longer tool life. The special cutting shape C allows for efficient thread cutting, while the integrated lubrication grooves ensure optimal cooling and lubrication during the cutting process. This tool is ideal for machining steel, cast steel, stainless steel, as well as pure aluminum and aluminum castings.

  • High-precision thread cutter for ISO metric threads M4 with a pitch of 0.70 mm
  • TiN coating for increased wear resistance
  • Integrated lubrication grooves to enhance cooling and lubrication
  • Suitable for through and blind hole threads in various materials
  • Complies with the DIN 2174 standard for thread cutters.

Key specifications

Set
Singles
thread type
M4
tap type
Screw taps
Direction of rotation
Right + Right

General information

Item number
22412295
Manufacturer
Dormer
Category
Threading taps + Threading dies
Manufacturer no.
E294M4
Release date
16.9.2022

Tap Properties

tap type
Screw taps
thread type
M4
Internal diameter
4.50 mm
Outside diameter
4.50 mm
gradient
0.70 mm
DIN standard
DIN 2174
Set
Singles
Direction of rotation
Right + Right

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Thread forming taps DIN 2174 4 Form C 2 - 3.5 HSS-E TiN 6HX

Product dimensions

Length
63 mm
Diameter
4.50 mm
