Dormakaba Slide rail with lever G-EMF XEA

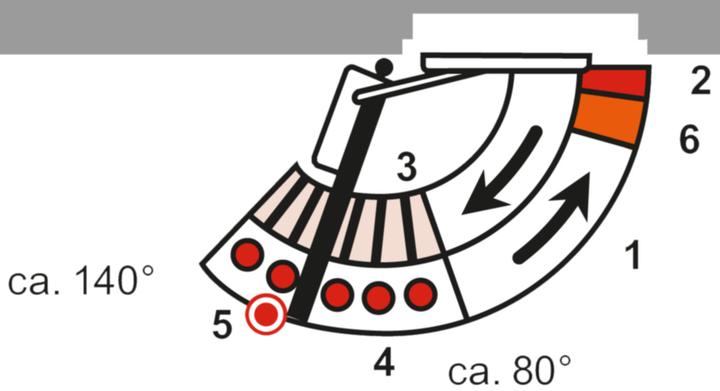

With lever for TS 98 XEA or TS 92 XEA in XEA design. Allows for precise door holding without rebound. The holding point is adjustable to an opening angle between approximately 80° and 140°. Note: The holding point is also the maximum door opening angle; door stops should be used. In case of an alarm or power failure, the hold is released and the door is closed by the door closer. The control is done via external smoke detection control panels. The adjustable release force (tool-free) allows for easy manual triggering of the hold. Includes lever, sliding rail, sliding piece, electromechanical holding unit, cover, mounting screws, and end caps. The sliding rail is mounted on the lintel and is suitable for both DIN-L and DIN-R doors. Operating voltage 24 V DC, power consumption 1.4 W, duty cycle 100% ED. For particularly large and heavy doors (over 1250 mm) or doors where the holding point should exceed 140°, we recommend using EM holding magnets in conjunction with the RMZ XEA instead of the G-EMF-XEA. Additional technical specifications: max. door width 1400 mm.
