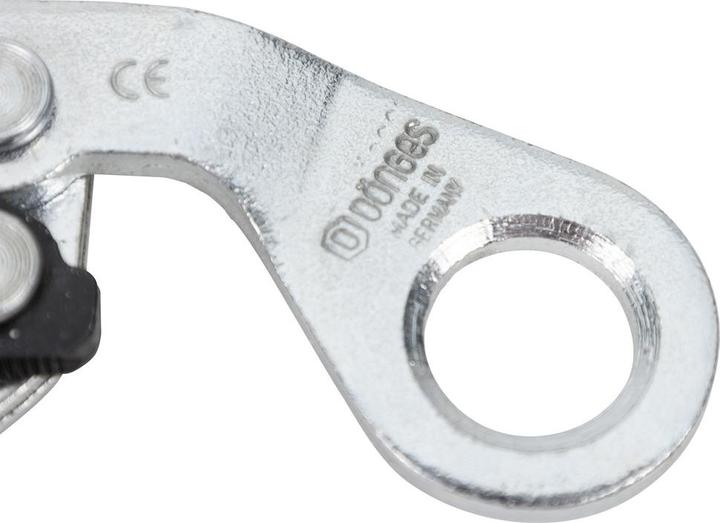

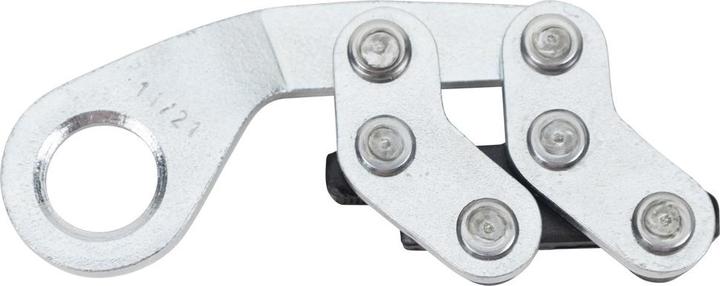

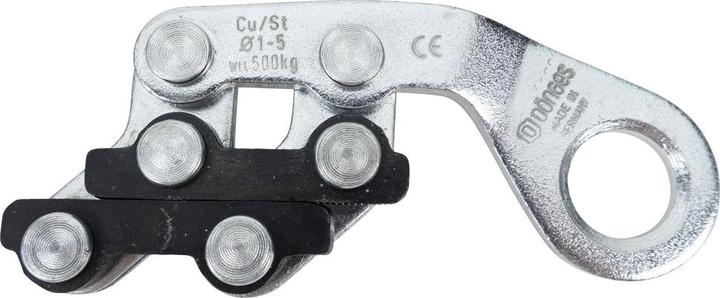

Dönges Rope tension clamps, rope cross-section 1-16 mm², wire Ø 1-5 mm

Rope tension clamp for copper and steel ropes - Made in Germany
Rope tensioning clamps are suitable for the safe tensioning of copper and steel ropes in industry and trade. Due to the profiled clamping jaws, damage to the tensioned material is impossible.

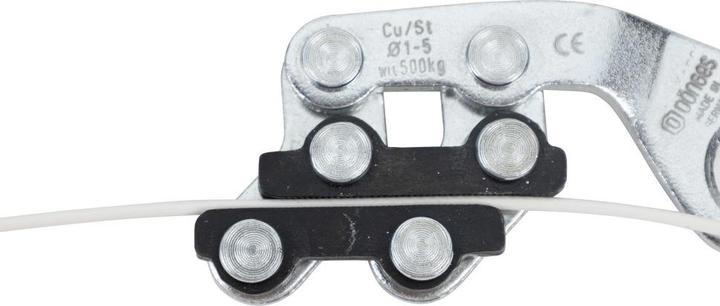

The clamping jaws can easily be opened by hand to insert the rope. By pulling, a high-strength connection is then created, which is suitable for a firm stop. Simple opening is done by counter-pull.

Features:

• for copper and steel ropes
• with profiled clamping jaws for a secure hold
• non-slip grip even at highest tensile force
• corrosion-protected due to burnished clamping jaws and zinc-plated individual parts
• Remote release through hole in clamping jaw possible

Scope of delivery:
1 piece rope tension clamp

• ----------------------------

Selection criteria:
Wire cross-section: 1-16 mm2
Wire ß: 1-5 mm

• ----------------------------

Technical data:
Eye size: 20 mm
breaking load: 1250 kg
Load capacity: 500 kg
Weight: 250 g

Item number: 30-560001-0
Shop number: 131860.
