DeWalt Panel saw DWS777

57Ratings
BrandMore from DeWalt
Test reportsVery good based on 1 test
Delivered between Thu, 12.6. and Wed, 18.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

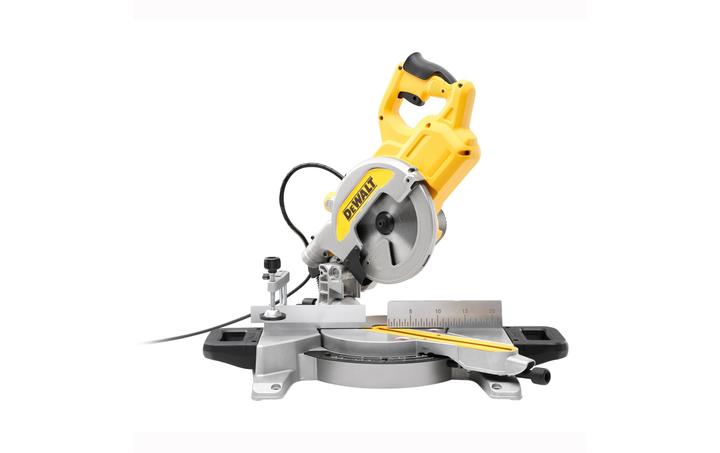

Very compact and lightweight panel saw with a powerful 1,800-watt motor. The workpiece stop that slides to the left allows for safe processing of small workpieces as well as hassle-free miter cuts. Work even more precisely with the XPS cut line indicator. Improved dust extraction, AirLock compatible. The easy handling of large workpieces with the highest precision is made possible by the internal trombone slide with SKF sliding and ball bearings. The machined base plate and stop are made of high-quality die-cast aluminum. The spindle guard is recessed into the housing. The secure locking mechanism of the extension and saw head facilitates transport.

Key specifications

Nominal diameter
216 mm
Max. depth of cut at 90°
190 mm
Mains voltage
230 V
Power
1800 W
Item number
10763231

General information

Manufacturer
DeWalt
Category
Chop saw + mitre saw
Manufacturer no.
DWS777-QS
Release date
21.4.2022
Sales rank in Category Chop saw + mitre saw
60 of 313
External links
Manufacturer's site (de)
May include power adapter
Yes

Colour

Colour
Yellow
Exact colour description
Silver / Yellow

Chop saw + mitre saw Features

Suitable for
Wood
Max. tilt adjustment
48°
Mounting hole
30 mm

Saw blade properties

Nominal diameter
216 mm
Number of teeth
24

Depth of cut

Max. depth of cut at 90°
190 mm
Max. Depth of cut at 45
48 mm

Energy supply

Power supply
Electrical connection

Battery / accumulator features

Battery equipment
No batteries supplied
Charger equipment
No charger supplied

Mains operation Features

Mains voltage
230 V
Cable length
0.22 m

Power

Power
1800 W
Max. Idle speed
6300 rpm
Max. noise level
104 dB
Sound power level (LWA)
104 dB

Material

Material group
Metal
Material
Metal / plastic

Origin

Country of origin
Italy

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
24 tooth carbide saw blade, Assembly tool, Panel saw, Workpiece clamp

Product dimensions

Length
550 mm
Width
490 mm
Height
590 mm
Weight
14 kg

Package dimensions

Length
55 cm
Width
45.70 cm
Height
44 cm
Weight
17.66 kg

30-day right of return
24 Months Warranty (Bring-in)
3 additional offers

Compare products

Goes with

Reviews & Ratings

Warranty score

How often does a product of this brand in the «Chop saw + mitre saw» category have a defect within the first 24 months?

Source: Digitec Galaxus
  • 1.DeWalt
    0.4 %
  • 2.Makita
    0.7 %
  • 3.Bosch Professional
    1 %
  • 3.Metabo
    1 %
  • 5.Einhell
    1.5 %

Warranty case duration

How many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?

Source: Digitec Galaxus
  • 1.Einhell
    2 days
  • 1.Makita
    2 days
  • 1.Metabo
    2 days
  • 4.Bosch Professional
    4 days
  • 4.Scheppach
    4 days

Return rate

How often is a product of this brand in the «Chop saw + mitre saw» category returned?

Source: Digitec Galaxus
  • 2.Makita
    1.5 %
  • 3.Einhell
    1.6 %
  • 4.Metabo
    2 %
  • 5.DeWalt
    2.3 %
  • 6.Scheppach
    2.9 %
Source: Digitec Galaxus

Very good80/100
selber machen Logo
selber machenSingle testReleaseAugust 2022
  • Positivesehr robuste Verarbeitung
  • Positivepräzises Schnittergebnis
  • Positiveschneller Blattwechsel
  • Negativegewöhnungsbedürftiges Handling bei Zugschnitten
  • Negativekein Laser

Wie vom Hersteller DeWalt gewohnt, ist auch das Modell DWS777 eine sehr gut verarbeitete und robuste Maschine. Sämtliche Lagerungen sind hochwertig und spielfrei, was saubere und präzise Schnitte gewährleistet. Das Handling ist etwas gewöhnungsbedürftig, da die Linearführungen mit nach oben klappen...
