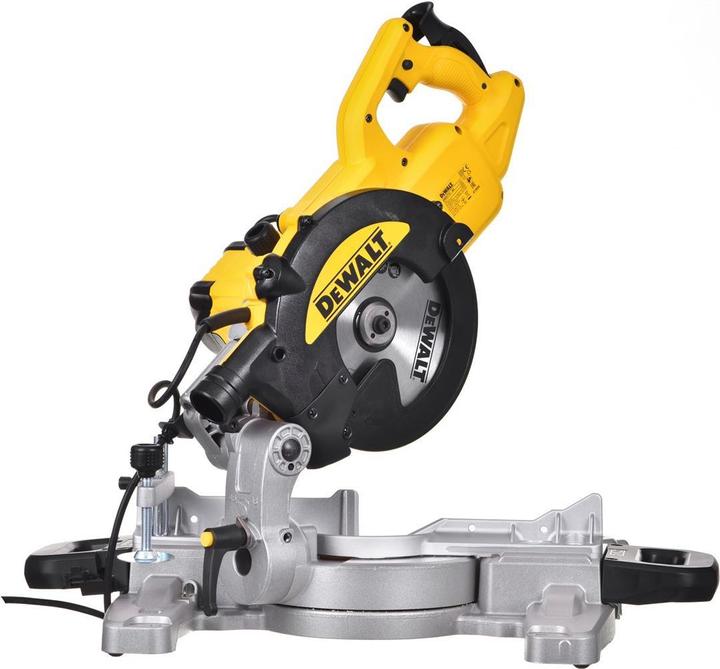

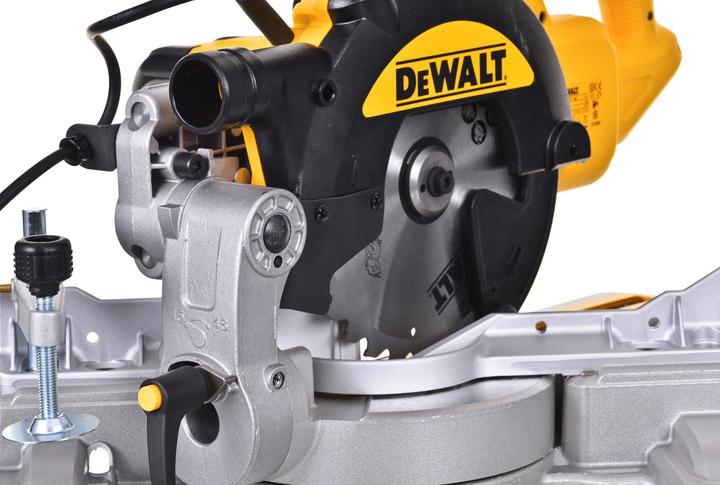

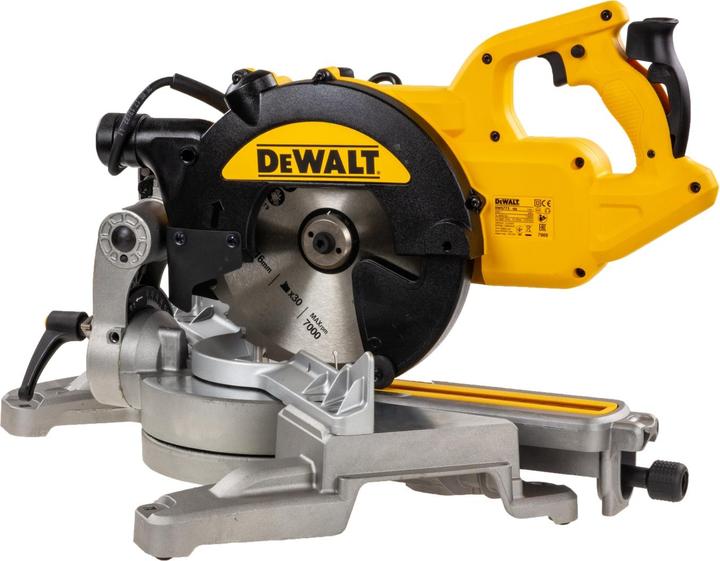

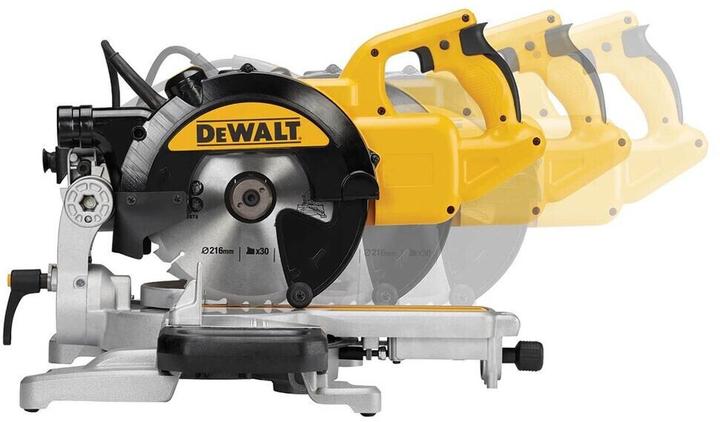

Extremely lightweight and compact, the panel saw is ideal for use in assembly. It features a 1,300-watt motor with sufficient power reserves for most applications. The improved dust extraction is AirLock compatible. The precision-machined base plate and the stop are made of high-quality die-cast aluminum. For secure transport and clean cross-cut applications, the extension can be locked in place. It has fixed detent points for standard miter cuts at 0°, 15°, 22.5°, 30°, and 45°, as well as an easy quick adjustment up to 50°. The stop system is also ideal for angled cuts on smaller workpieces. The simple processing of large workpieces is made possible with the internal trombone extension with the highest precision. It has an extremely low weight of only 12 kg and offers a large cutting capacity thanks to the internal trombone extension with SKF sliding and ball bearings.
Nominal diameter | 216 mm |
Max. depth of cut at 90° | 216 mm |
Mains voltage | 230 V |
Power | 1300 W |
Item number | 14030456 |
Manufacturer | DeWalt |
Category | Chop saw + mitre saw |
Manufacturer no. | DWS773-QS |
Release date | 21.4.2022 |
Sales rank in Category Chop saw + mitre saw | 6 of 364 |
May include power adapter | Yes |
Colour | Black, Yellow |
Exact colour description | black / yellow |
Suitable for | Wood |
Max. tilt adjustment | 90° |
Mounting hole | 30 mm |
Nominal diameter | 216 mm |
Number of teeth | 24 |
Max. depth of cut at 90° | 216 mm |
Max. Depth of cut at 45 | 70 mm |
Power supply | Electrical connection |
Battery type | Li-ion |
Battery equipment | No batteries supplied |
Charger equipment | No charger supplied |
Mains voltage | 230 V |
Cable length | 0.22 m |
Power | 1300 W |
Max. Idle speed | 4500 rpm |
Max. noise level | 93 dB |
Sound power level (LWA) | 93 dB |
Sound pressure level (LpA) | 104 dB |
Material group | Metal |
Material | Metal / plastic |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 24 tooth carbide saw blade, Panel saw, Workpiece clamp |
Length | 490 mm |
Width | 490 mm |
Height | 590 mm |
Weight | 12 kg |
Length | 52.50 cm |
Width | 45.80 cm |
Height | 40.30 cm |
Weight | 14.02 kg |
