DWE576KR:
Scale for precise depth adjustment up to 61 mm. Powerful 1,600 Watt high-performance motor for perfect cutting performance. Directly usable on DeWalt guide rails thanks to specially designed saw shoe. Variable angle adjustment up to 57°. Additional handle for safe operation. Integrated and efficient dust extraction connection minimizes airborne dust particles.
DWS 5022:
1500 mm guide rail for use with DEWALT plunge saws. Double-sided anti-splinter protection for tear-free cutting. Glide surface for easy movement of the machine on the guide rail. Innovative, centrally positioned saw guide allows the saw to be used on the guide rail in both directions. Use in both directions enables different cuts (90° and 45°) with one rail without changing the anti-splinter protection.
24 tooth HM saw blade (DT10304). Parallel stop. Protective cover attachment for dust extraction. Transport case.
Technical Data:
Input power: 1,600 Watts. No-load speed: 5,200 min-1. Blade diameter: 190 mm. Blade bore: 30 mm. Bevel adjustment: 57°. Max. cutting depth at 90°: 61 mm, with guide rail: 57 mm. Max. cutting depth at 45°: 43 mm, with guide rail: 39 mm. Weight: 4.0 kg.
Scope of delivery:

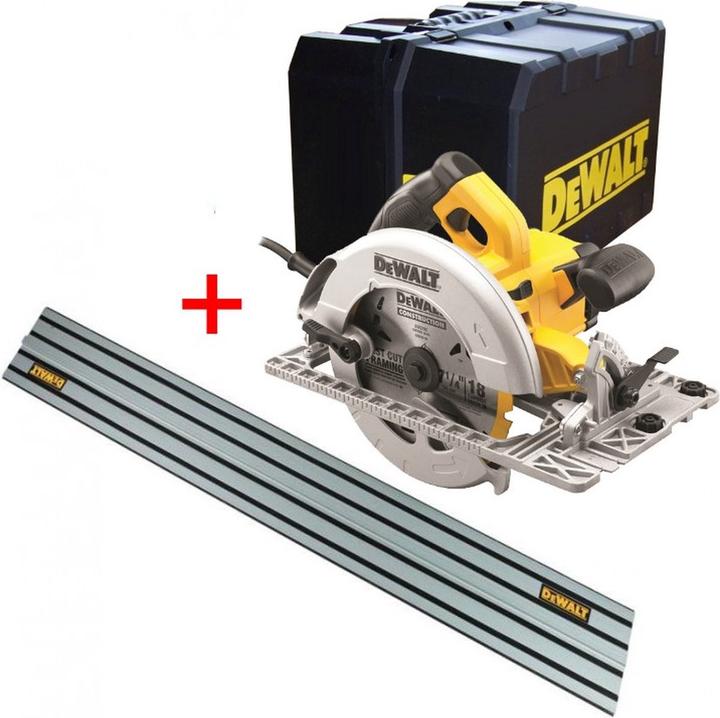

Circular saw, 24 tooth HM saw blade (DT10304), parallel stop, protective cover attachment for dust extraction, transport case, 1500 mm guide rail DWS 5022.
Diameter saw blade | 190 mm |
Power supply | Electrical connection |
Weight | 4 kg |
Max. depth of cut at 90° | 61 mm |
Max. Depth of cut at 45 | 43 mm |
Max. Idle speed | 5200 rpm |
Item number | 10765204 |
Manufacturer | DeWalt |
Category | Hand-held circular saws |
Manufacturer no. | DWE576KR-QS |
Release date | 16.3.2019 |
May include power adapter | Yes |
Colour | Black, Yellow |
Exact colour description | Black, Yellow |
Mounting hole | 30 mm |
Diameter saw blade | 190 mm |
Max. depth of cut at 90° | 61 mm |
Max. Depth of cut at 45 | 43 mm |
Power supply | Electrical connection |
Capacity | 6 Ah |
Mains voltage | 230 V |
Power | 1600 W |
Max. Idle speed | 5200 rpm |
Max. noise level | 89 dB |
Scope of delivery | 1,500 mm guide rail DWS 5022, 24 tooth carbide saw blade, Hand-held circular saw, Protective bonnet attachment for dust extraction, Rip fence, Transport case |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 35.50 cm |
Width | 11.50 cm |
Height | 5.50 cm |
Weight | 4 kg |
Length | 157.20 cm |
Width | 25.70 cm |
Height | 38.50 cm |
Weight | 10.63 kg |
