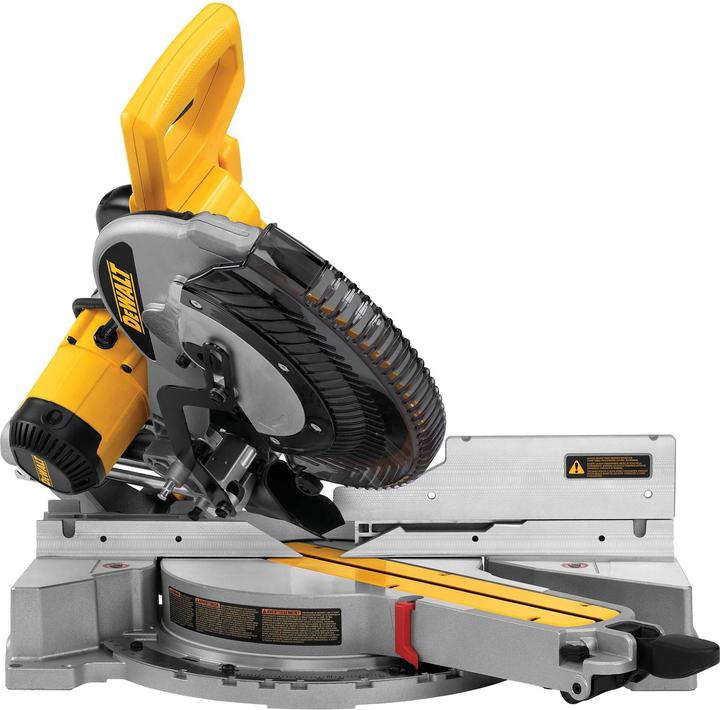

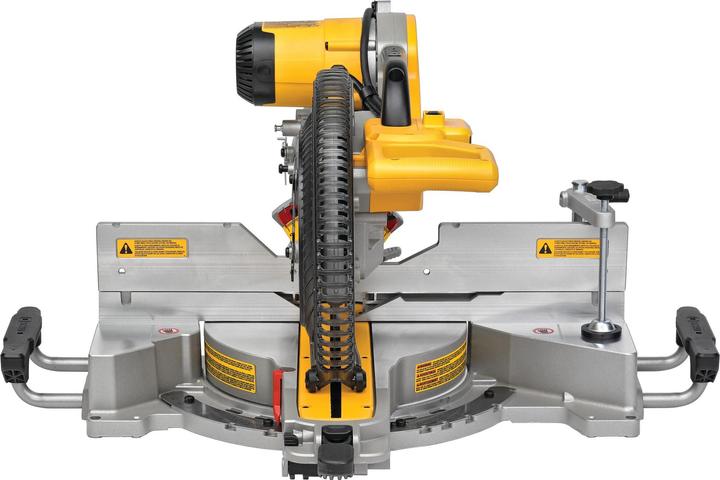

DeWalt DWS780-QS Panel saw

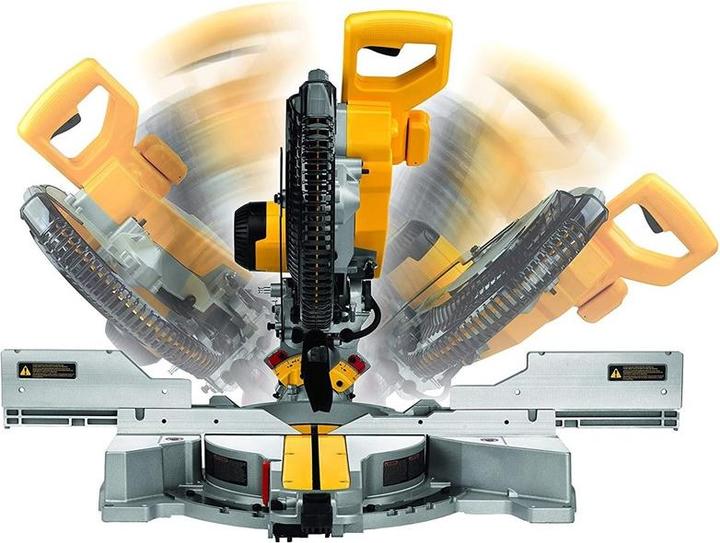

Exact mitre angles can be executed quickly and easily up to 60° right and up to 50° left
Angle of inclination precisely and continuously adjustable
Improved dust extraction offers a clear view of the workpiece
Cutting depth limitation for tenoning, notching and grooving
Optimally suited for assembly due to compact dimensions and low weight
Extreme load capacity and accuracy of the machine with perfect precision
Robust and face-milled saw table and rotary table
Large, dust-protected double extension enables the processing of large workpieces
High-quality guide roller bearings for precise cuts up to 345 mm length
Electronic speed control for material-specific use ensures clean and precise cuts

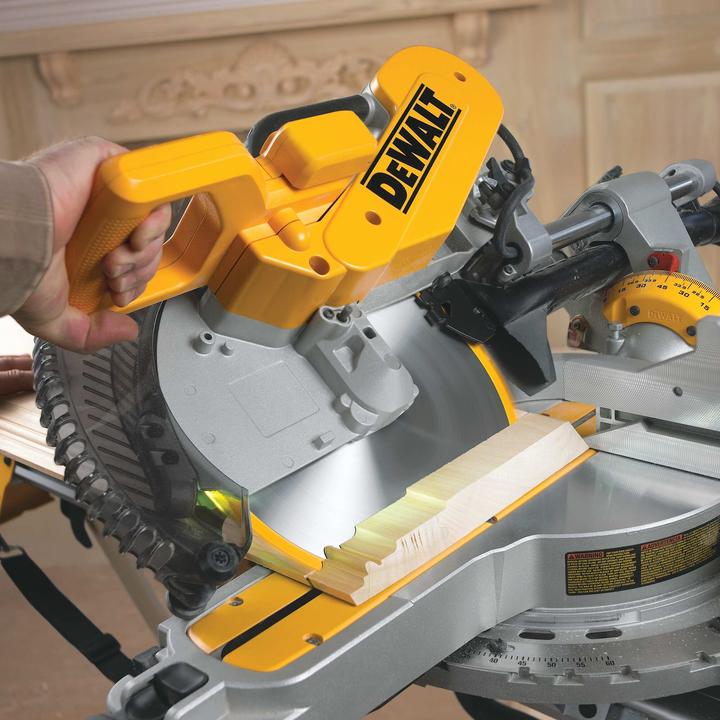

Millimetre-precise cuts thanks to LED-supported cutting line display (XPS)
Exact inclination angles up to 49° each right and left infinitely adjustable
Very high cutting capacity of up to 110 x 303 mm
Scope of delivery:
305mm panel saw
60 tooth HMS saw blade
Dust bag
Assembly tool
Workpiece clamp
Technical data:
Input power (watts): 1,675 watts
Idle speed (rpm): 1,900 3,800
Mitre adjustment: 60° right / 50° left
Tilt adjustment on both sides: up to 49
Saw blade dimensions (mm): 305 x 30
Weight (kg): 24,8
Cutting range at:
90° / 90° (mm): 110 x 303
90° / 45° (mm): 112 x 211
45° / 90° (mm): 268 x 63
45° / 45° (mm): 211 x 65
Sound pressure level LPA dB(A): 93.0
Sound power level LWA dB(A): 100.0
Uncertainty factor K dB(A): 3.0
Vibration(m/s²): ?2,5
Uncertainty factor K (m/s²): 1,5
