DeWalt DCS 520

Delivered between Sat, 23.5. and Sat, 13.6.
5 items ordered
free shipping

Product details

DCS520 Saw. Comfortable continuous operation without repositioning. The 42-tooth blade ensures a very precise and nearly scratch-free laminate cut. Precise adjustment of the setting relative to the rail. The anti-kickback feature prevents the plunge saw from sliding back along the rail and falling out of the material during plunge cuts. The electronic speed control allows for adjustment to the specific type of work and the material being processed. The closed cover design enables dust removal of up to 90%. The cutting depth of up to 55 mm allows for trimming and processing of the most common door sizes.

Additional benefits of the device: The anti-kickback mechanism moves the tool back along the rail, which not only increases operator safety but also prevents errors caused by uncontrolled movements of the DCS520 plunge saw. With the electronic speed control, the operator can adjust the model to the specific type of work being performed and the material being processed, ensuring efficiency and accuracy. The closed protective design safeguards the key motor components, extending the tool's lifespan, and the option to connect a vacuum cleaner or chip extraction system is an added enhancement. The DeWalt DCS520T2 offers cuts up to 55 mm for trimming and processing the most common door sizes.

Key specifications

Diameter saw blade
165 mm
Max. depth of cut at 90°
59 mm
Max. Depth of cut at 45
44 mm
Power supply
Rechargeable battery operated
Max. Idle speed
4200 rpm
Weight
8.20 kg

General information

Item number
34388902
Manufacturer
DeWalt
Category
Hand-held circular saws
Manufacturer no.
5035048643020
Release date
17.5.2023
Sales rank in Category Hand-held circular saws
144 of 966
May include power adapter
No

Hand-held circular saw properties

Suitable for
Wood
Mounting hole
20 mm
Diameter saw blade
165 mm
Additional properties
Brushless electric motorConnection for dust extractionKickback protection

Depth of cut

Max. depth of cut at 90°
59 mm
Max. Depth of cut at 45
44 mm

Energy supply

Power supply
Rechargeable battery operated

Battery / accumulator features

Battery type
Li-ion
Battery voltage
54 V
Capacity
3 Ah
Number of batteries
2x
Battery system
DeWalt XR Flexvolt 18-54V
Battery equipment
2 batteries supplied
Charger equipment
Charger supplied

Power

Max. Idle speed
4200 rpm

Scope of delivery

Scope of delivery

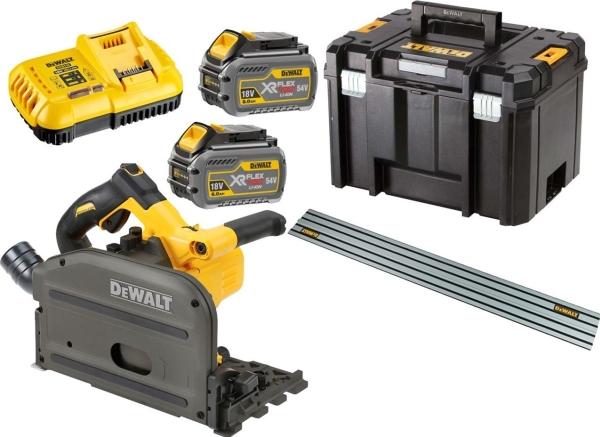

1.5m guide rail2x 6.0 Ah batteriesBattery chargerSuitcase

Origin

Country of origin
United Kingdom

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
73.35 kg
Climate contribution
CHF 1.75

Product dimensions

Weight
8.20 kg

Package dimensions

Length
157 cm
Width
21 cm
Height
35 cm
Weight
30 kg
