Devi Thin-bed set 300 W, 2.0qm 140F1652 with WLAN thermostat

Danfoss Thin Bed Set 300W 140F1652

Manufacturer: Danfoss
Designation: Thin Bed Set 300W
Type: 140F1652
With carrier mat: yes
Fixation of heating cable: glued
Self-adhesive: yes
Connection power: 0-300 W
Power: 150 W/m²
Heating cable load: 11 W/m
Number of cold conductors: 1
Length of cold conductor: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 2 m²
Length: 4000 mm
Width: 500 mm
Thickness: 3.5 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

Danfoss Thin Bed Set 300W 140F1652: additional details

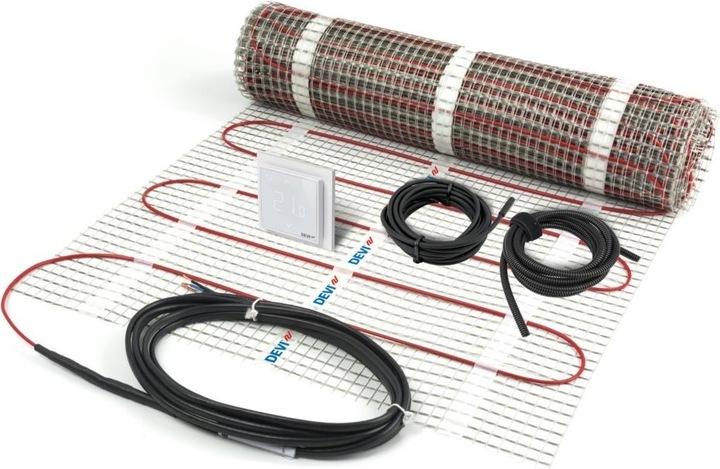

Thin bed set with Wi-Fi thermostat, flexible sensor protection tube DN10 with red cap, plastic nails, installation instructions. The self-adhesive thin bed heating mat with a connection cable is pre-assembled and has been specifically designed for installation in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor temperature system is particularly suitable for retrofitting in irregular and/or large rooms, as the return of the second connection is not required. The heating cable, with additional protective sheath for the use of RCD protection, is applied to a plastic mesh. The length of the connection cables is 4.0 m. Cold conductor: 1 x 4 m, 1.0 mm², Voltage: 230 V, Rated temperature limit: 120 °C, Specific heating power: 150 W/m², Length load: 11 W, Insulation: PVDF / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Calculation width: 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval: EN 60335-2-96, Area: 2.0 m².
