Dema Body turning device

Body turning device 500 kg

Original Dema body turning device 500 kg. Suitable for professional, customised bodywork and painting work. Work stress-free and back-friendly. All positions can be easily and precisely adjusted using lever rods, spindle stroke or hydraulic punch. Precise length adjustment up to a usable length of 5.60 metres is infinitely variable. When not in use, the complete turning device can be stored in a very space-saving manner. Don't hesitate - work safely and efficiently.

Equipment:

• Sturdy, well thought-out metal frame construction

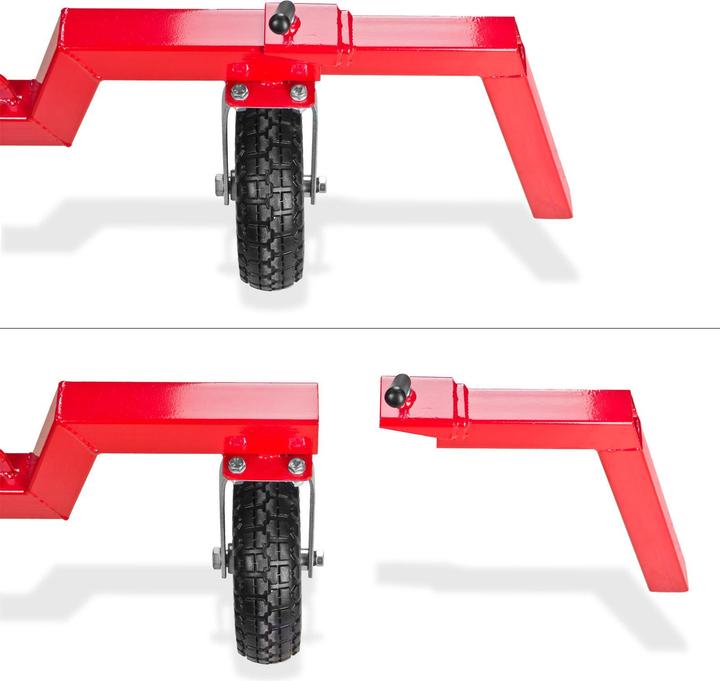

• Removable extensions for a secure stand
• Independent height adjustment right/left via spindle/hydraulic cylinder
• Stepless length adjustment
• Boom support infinitely adjustable
• PU wheels (no more flat tyres) for optimum handling, even in the smallest of spaces

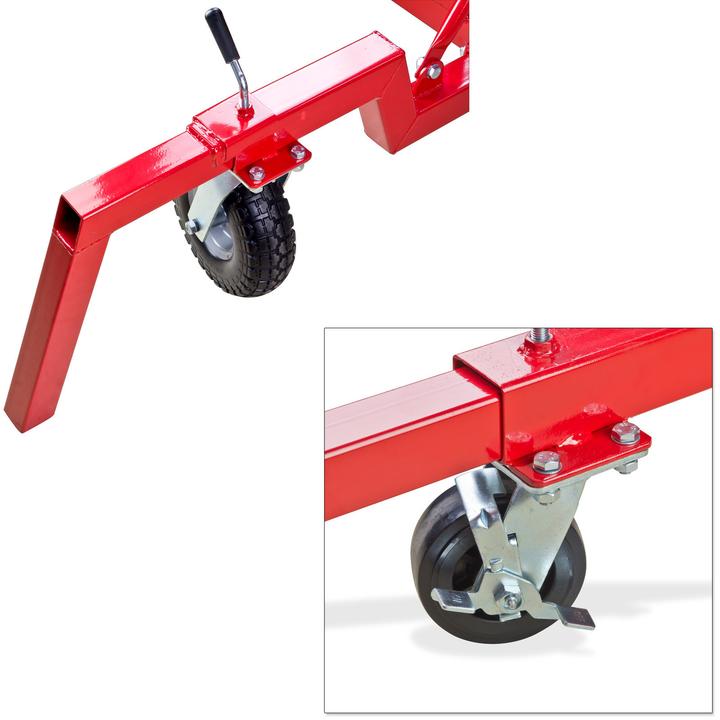

• All wheels are castor wheels - the small ones also have a parking brake
• Supplied as a kit with all fasteners

Technical data:

• Total maximum load: 500 kg
• Usable length infinitely adjustable up to 5.6 m
• Main construction made of square tube: 70 x 70 mm
• Connecting tubes: 50 x 50 / 40 x 40 mm
• Outrigger support L x W: 90 x 34 cm
• Boom height over longitudinal axis: min/max 23/114 cm
• Ø x width PU wheels: 25 x 8 cm
• Ø x width of small wheels: 12.5 x 4.5 cm
• Body dimensions L x W x H max: 630 x 190 x 211 cm
• Body dimensions L x W x H min: 205 x 121 (without additional supports) x 119 (at lowest setting) cm
• Weight: 163 kg

Special features:
Please note the following: A vehicle-specific mount must be manufactured by yourself.
