Dehn PAS EX 11AP M10 V2A

Ratings
BrandMore from Dehn
Delivered between Fri, 30.1. and Wed, 4.2.
7 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

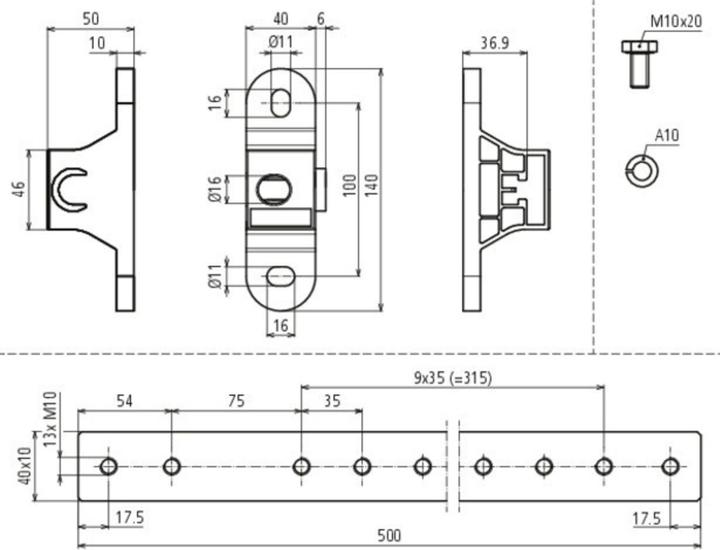

DEHN Potential Equalization Rail PAS EX 11AP M10 V2A

Manufacturer: DEHN
Designation: Potential Equalization Rail
Type: PAS EX 11AP M10 V2A
Design: Modular installation
Version: Without cover
Insulator: Yes
Explosion-proof version: Yes
Height: 50 mm
Width: 140 mm
Length: 522 mm
Number of connections for rigid conductors up to 95 mm²: 11
Material of the contact rail: Stainless steel (V2A)
Surface of the contact rail: Untreated
Material of the clamp: Stainless steel (V2A)
Surface of the clamp: Untreated

DEHN Potential Equalization Rail PAS EX 11AP M10 V2A: Additional Details
Spark-free explosion-proof potential equalization rail for integrating metallic conductors and cables into lightning protection potential equalization according to VDE 0185-305-3 (IEC 62305-3) as well as protective and functional potential equalization according to DIN VDE 0100 Part 410/540. Suitable for use in Ex Zones 1 and 2 (gases, vapors, mists) and Ex Zones 21 and 22 (dusts) Explosion Group IIC (Safety Factor 1) according to CLC 50703-2. Complies with temperature class T4 and DIN EN 62561-1 (VDE 0185-561-1) lightning current carrying capacity class H (100 kA). Screw locking against self-loosening according to VDE 0185-305-3 Supplement 2. Suitable for use both indoors and outdoors. To avoid whisker formation in the Ex area, the use of tinned crimp terminals with a nickel barrier layer is recommended. The product features the following connections: 11x crimp terminal (M10 x 20 mm with spring ring).

Key specifications

Width
140 mm
Length
522 mm
Height
50 mm

General information

Item number
31310544
Manufacturer
Dehn
Category
Wiring closet technology
Manufacturer no.
472421
Release date
23.9.2022
Sales rank in Category Wiring closet technology
15 of 19238
External links
Manufacturer's site (de)

Colour

Colour
Silver
Exact colour description
Untreated

Material

Material group
Metal
Material
Stainless steel 304 (V2A)

Distribution cabinet technology Features

Area of use
Inside, Outside
breaking capacity
100 kA
Divisions
11x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
522 mm
Width
140 mm
Height
50 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
