Product details

DEHN Potential Equalization Rail PAS I 10AP M10 V2A

Manufacturer: DEHN
Designation: Potential equalization rail without cover in stainless steel
Type: PAS I 10AP M10 V2A
Design: Fixed installation
Version: Without cover cap
Insulator: Yes
Explosion-proof version: Yes

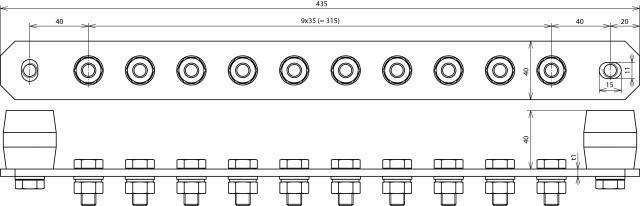

Height: 60 mm
Width: 40 mm
Length: 435 mm
Total number of connections for round conductors: 10
Material of the contact rail: Stainless steel (V2A)
Surface of the contact rail: Untreated
Material of the clamp: Stainless steel (V2A)
Surface of the clamp: Untreated

Additional details:
Industrial potential equalization rail according to DIN EN 62561-1, for protection and functional potential equalization according to DIN VDE 0100-410/540 and lightning protection potential equalization according to DIN EN 62305-3 (VDE 0185-305-3). With UP insulator (thermoplastic, red) with M10 thread, UV-stabilized and halogen-free. Also suitable for use in Ex areas (self-locking of screws secured). Version with 10 connections - M10 screw, spring washer, and nut.

Key specifications

Length
435 mm
Width
40 mm
Height
60 mm

General information

Item number
17932824
Manufacturer
Dehn
Category
Wiring closet technology
Manufacturer No.
472219
Release date
15.12.2021

Colour

Colour
Silver
Exact colour description
Stainless steel

Material

Material group
Metal
Material
Stainless steel (V2A), Stainless steel (V2A), Stainless steel 304 (V2A)

Distribution cabinet technology Features

Area of use
Inside
Fuse size
M10
Divisions
10x

Smart home features

Configuration effort
Manual configuration

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
435 mm
Width
40 mm
Height
60 mm
Depth
435 mm
