DEHN Generator Connection Box DCU 2 YPV 1100 2M 1S
Manufacturer: DEHN
Description: Generator connection box for PV systems
Type: DCU 2 YPV 1100 2M 1S
Max. Input Voltage DC: 1100 V

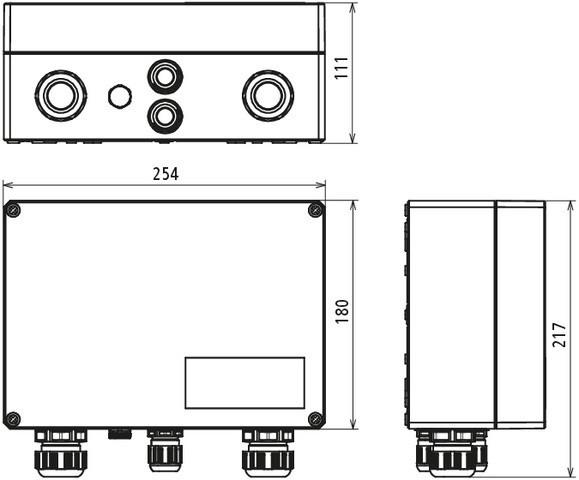

Width: 254 mm
Height: 180 mm
Depth: 111 mm
Material: Plastic
Protection Class (IP): IP65
Impact Resistance: IK08
Test Class Type 1: no
Test Class Type 2: no
Test Class Type 3: no
Max. Output Current: 20 A
Color: gray
Number of Cable Entries: 10
Type of Entry: Screw connection
Number of String Inputs: 2
With Grounding Connection: no
Equipped with Load Disconnect Switch: no

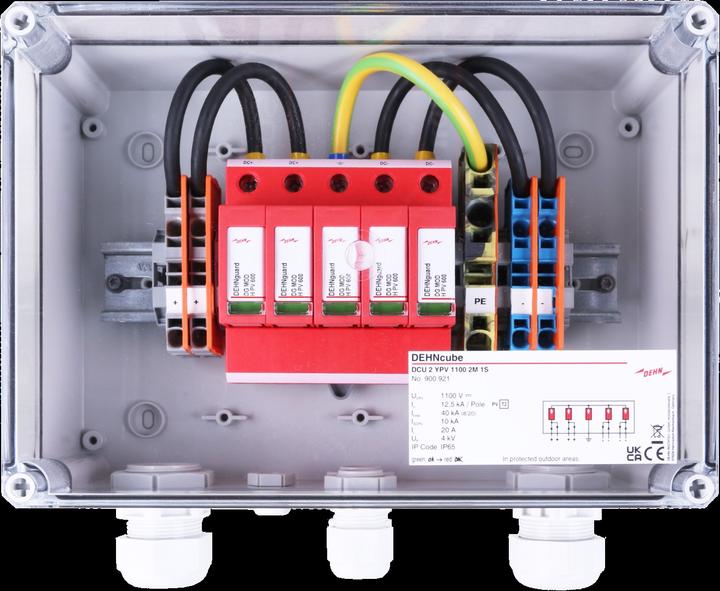

The generator connection box DCU 2 YPV 1100 2M 1S offers IP65 protection and complies with the standard DIN EN IEC 61439-2 for the protection of two MPP inputs and one string each. It features a three-stage DC switching device with a combined disconnection and short-circuiting device for safe electrical separation. The application is in accordance with DIN IEC 60364-7-712:2011-04 (Installation of photovoltaic supply systems).
Protection type (IP code) | IP65 |
Length | 111 mm |
Width | 254 mm |
Height | 180 mm |
Item number | 33786543 |
Manufacturer | Dehn |
Category | Wiring closet technology |
Manufacturer no. | 900921 |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
Nominal current | 20 A |
Protection type (IP code) | IP65 |
Leakage current | 0.02 kA |
input voltage | 1100 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Length | 111 mm |
Width | 254 mm |
Height | 180 mm |
Depth | 111 mm |
Length | 29 cm |
Width | 29 cm |
Height | 18.50 cm |
Weight | 2 kg |
