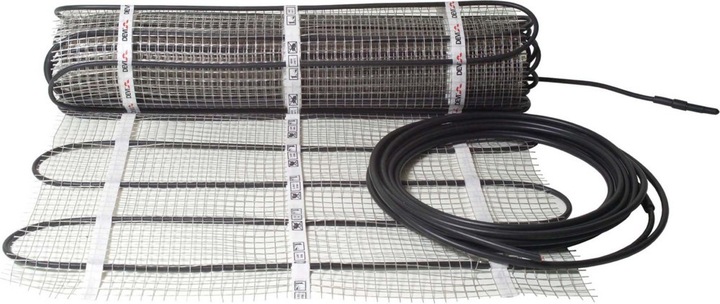

Danfoss Heating mat 100W/sqm 840W 8,6qm 1Cold 83901912

Danfoss Heating Mat DTCE-100 840W

Manufacturer: Danfoss
Designation: Heating mat 230V
Type: DTCE-100 840W
With carrier mat: yes
Heating conductor fixation: glued
Self-adhesive: no
Connection power: 840 W
Power: 100 W/m²
Heating conductor load: 7.5 W/m
Number of cold leads: 1
Length of cold lead: 6000 mm
Suitable for damp rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 8.6 m²
Length: 11400 mm
Width: 750 mm
Thickness: 7 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no

Danfoss Heating Mat DTCE-100 840W: additional details
Heating mat with a connection cable suitable for installation in or under the screed. Suitable for use in dry, damp, or wet rooms. With additional protective sheath for the use of RCD protection. This heating mat system is particularly suitable for installation in awkward and/or large areas, as the return of the second connection is not required. Including factory-installed waterproof connectors and a 6 m long cold lead, heating cable according to IEC 60800, voltage: 230 V, nominal limit temperature: 80°C, specific heating power: 100 W/m², resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, outer diameter: 7 mm, minimum bending radius: 5 x dA, protection class: IP X7, area 8.6 m², 0.75 x 11.4 m.
