Danfoss Heating mat 100W/sqm 500W 5sqm 1cold 11W/m 140F0422

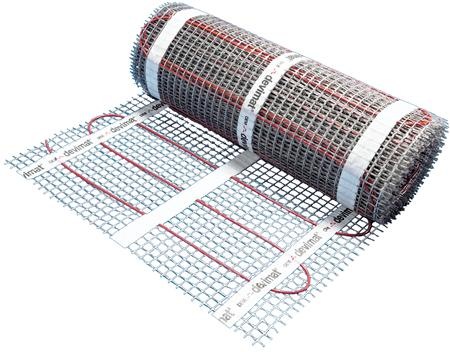

Danfoss Thin Bed Heating Mat 140F0422

Manufacturer: Danfoss
Description: Thin bed heating mat 100 W/m², 5 sqm
Type: 140F0422
Design: Heating foil
With carrier mat: yes
Heating conductor fixation: glued
Self-adhesive: yes
Connection power: 500 W
Power: 100 W/m²
Heating conductor load: 11 W/m
Number of cold leads: 1
Length of cold leads: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 5 m²
Length: 10000 mm
Width: 500 mm
Thickness: 3.5 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no

Danfoss Thin Bed Heating Mat 140F0422: additional details

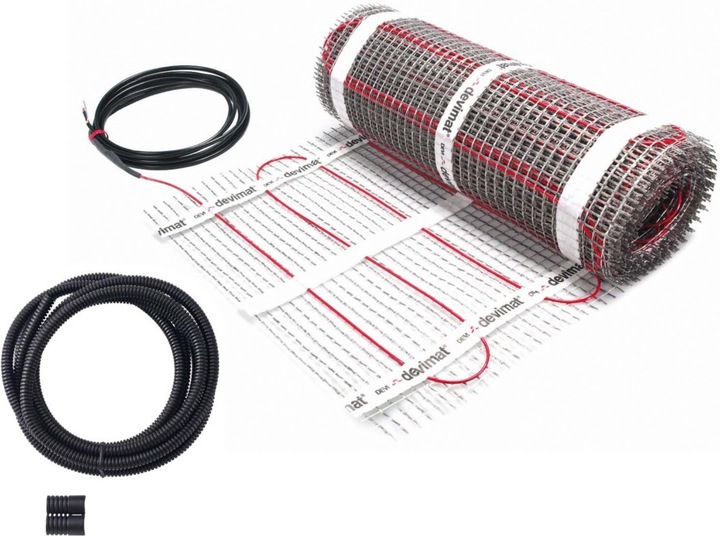

Thin bed heating mat with a connection cable and suitable sensor protection tube DN10 with red cap. The self-adhesive thin bed heating mat with a connection cable is pre-assembled for installation and has been specifically designed for embedding in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large rooms, as the return of the second connection is not required. The heating cable, with additional protective sheath for the use of RCD protection, is applied to a plastic mesh. The length of the connection cables is 4.0 m. Cold lead: 1 x 4 m, 1.0 mm², Voltage: 230 V, Rated limit temperature: 120 °C, Specific heating output: 100 W/m², Length load: 11 W, Insulation: PVDF / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Calculation width: 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval: EN 60335-2-96, Area 5.0 m², 0.5 x 10.0 m, EAN: 5703466203132.
