Product details

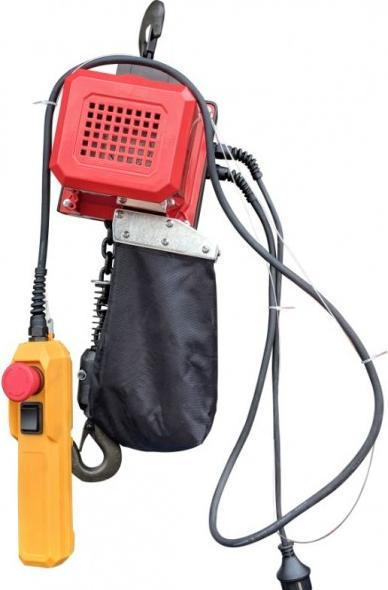

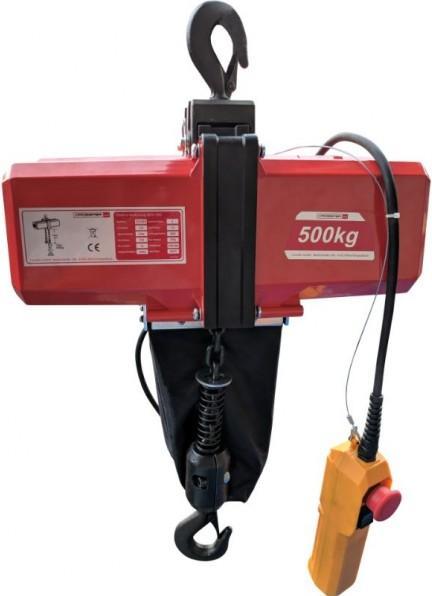

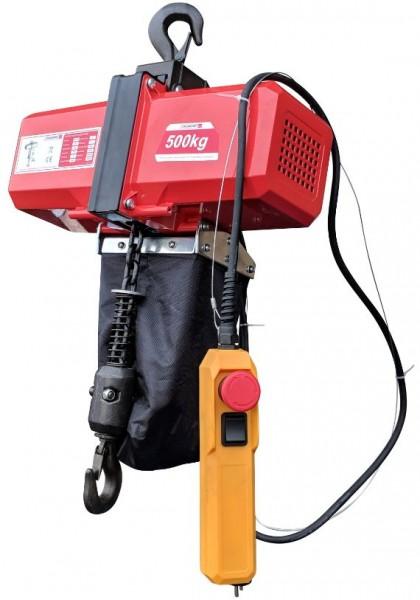

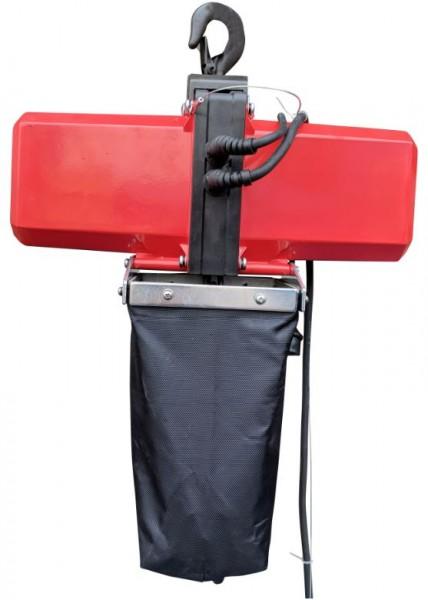

Crossfer - BDH-500 Electric Chain Hoist 500 kg 3 Meters
This electric chain hoist with a lifting capacity of 500 kg and a chain length of 3 meters meets the highest demands. The hand control is equipped with a control cable approximately 1.50 meters long. It features a maintenance-free single-phase 230V motor.
Product Features:
- One-handed operation
- Automatic emergency stop when retracting at the upper chain end
- Easy and quick assembly thanks to lightweight, compact design
- Maintenance-free single-phase 230V motor
The ideal helper for lifting heavy loads in:
- Workshops
- Garages
- Warehouses
- Agriculture and forestry
- Craftsmanship
- Industry
- Garden and landscape construction
- And many other areas
Delivery Includes:
- Electric Chain Hoist BDH-500
Technical Data:
- Motor: 230V 50Hz 540W 2.40A
- Protection Class: IP 54
- Duty Cycle: S3 25% 10min
- Power connection via 230V Schuko plug
- Lifting Capacity: 500 kg
- Chain Length: 3 meters
- Lifting Height: approx. 2.70 meters
- Chain Material Thickness: ø 6.3 mm
- Drive Group: M3
- Weight: 18.5 kg
- Gear Ratio: 137:1
- Chain Tensile Strength: >900N/mm²
- Dimensions LxWxH: 330 (580 lower edge of chain bag) x 400 x 210 mm.
