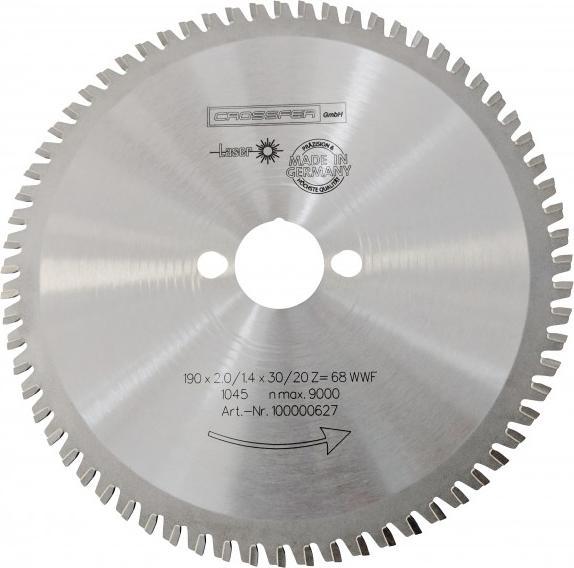

Crossfer - 190mm PROFI HM Multifunktions-Sägeblatt WSB-Multi 190x2,0/1,4x30>20 Z68 WWF/6,5 UNI 1

190mm Profi HM Multi-Function Saw Blade WSB-Multi 190x2.0/1.4x30 > 20 Z68 WWF/6.5 UNI 1

Multi-function circular saw blade WWF with alternate teeth and interchangeable bevel.

Diameter 190 mm x 2.0 mm x 1.4 mm, bore 30 mm (20 mm) Ø, 68 teeth, tooth shape = WWF. Also suitable for 20 mm mounts with the included reducing ring.

Highest precision, maximum cutting performance, and longest service life.

For cutting pipes and profiles made of unalloyed and low-alloy steel, as well as brass, copper, wood, and plastic. For intensive processing of a specific material, we recommend using a specialized saw blade.

• Suitable for use with miter saws, dry cutters, cutting machines, metal hand circular saws, cold saws, Jepson, Makita saws, etc.
• Excellent for the materials specified above.
• Absolutely precise operation due to laser-cut base plates.
• Excellent heat dissipation and maximum service life.
• Also suitable for other shaft diameters with our reducing rings.
• Only the most modern production methods are used.
• All saw blades undergo a technical and optical final inspection after manufacturing.

Description of the side holes: This saw blade is equipped with two unilaterals. This means it has combined side holes for drive pins with a diameter of 7 mm (pitch circle 42 mm), 9 mm (pitch circle 46 mm), and 40 mm, as well as 10 mm (pitch circle 60 mm).

Technical specifications:

• Blade diameter: 190 mm Ø
• Blade mount (bore): 30 mm Ø + reducing ring 20 mm
• Cutting width: 2.0 mm
• Blade body thickness: 1.4 mm
• Number of teeth: 68
• Tooth shape: WWF alternate tooth interchangeable bevel
• Cutting body material: HM carbide
• Maximum speed (RPM): 9,000
• Weight: 0.40 kg

Technical changes reserved at any time.
