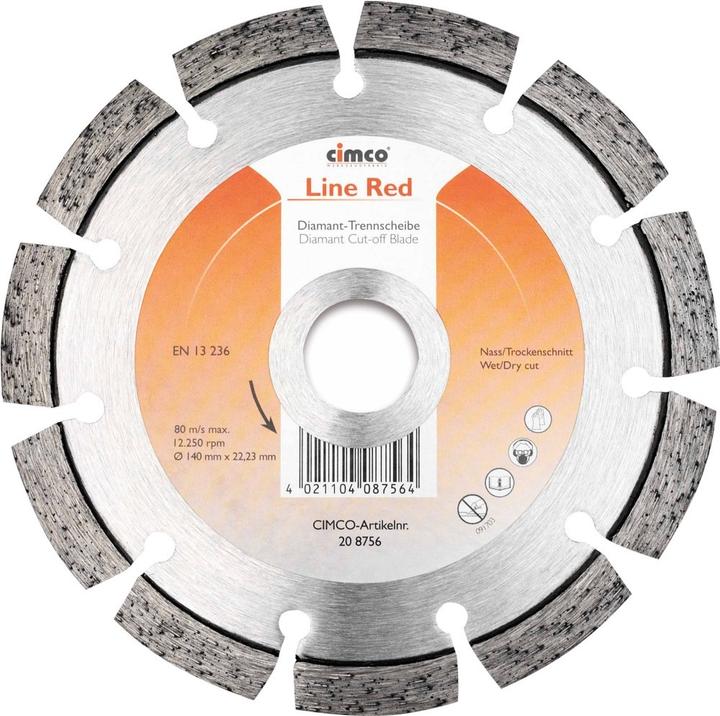

Cimco Diamond saw blade

Cimco diamond cutting disc 208756

Manufacturer: Cimco
Designation: Diamond cutting disc
Disc diameter: 140 mm
Bore diameter: 22.23 mm
Segmentation: Other
Segment width: 31.5 mm
Segment height: 10 mm
Number of segments: 11
Base plate material: Other
X-Lock mount: No
Max. speed: 13,300 1/min
Application: Cutting
Shape: Flat
Cup wheel: No
Flap wheel: No
Diamond wheel: Yes

Suitable for:

• Asphalt: Yes
• Brick: Yes
• Concrete: Yes
• Concrete/concrete block: Yes
• Reinforced concrete: Yes
• Aerated concrete: Yes
• Roof tiles: Yes
• Cast iron pipes: No
• Hard stone: Yes
• Sand-lime brick: Yes
• Ceramics: No
• Plastic: No
• Metal: No
• Natural stone: No
• Fireclay: No
• Exposed aggregate concrete: Yes
• Wood: No
• Wet use: Yes
• Dry use: Yes

Diamond cutting discs for dry and wet grinding, suitable for all commercially available angle grinders and wall groove cutters (acceptance diameter 22.2 mm). Designed with sintered or lasered diamond studs. Diamond segments made of diamond grain bond (chrome bronze). The cut-off wheels are equipped with a keyhole for cooling and meet the criteria of the EN 13236 test standard. Version with lasered diamond segments, parent blade hardness 38 HRC. Suitable for curbstone, paving, interlocking stone, roof tiles, masonry, concrete, exposed aggregate concrete, lightweight concrete, old concrete (hard/reinforced), sand-lime brick (soft/hard), clinker (medium hard), quadroblock, and basalt.
Diameter: 140 mm
EAN: 4021104087564.
