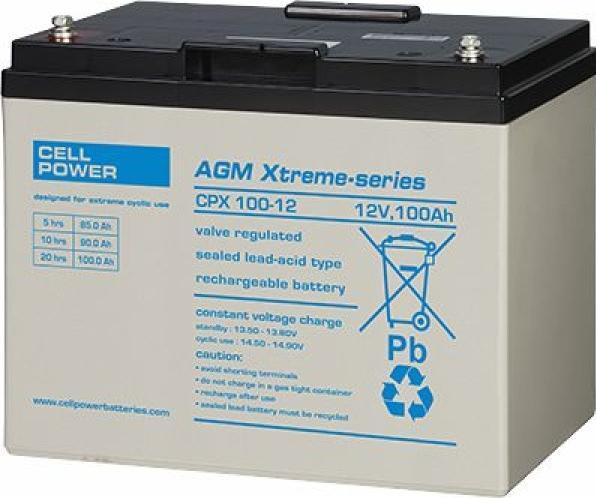

Cellpower CPX 100-12

Powerful 12V AGM traction battery with 100Ah (C20). Popular applications include golf caddies, driverless transport systems, lifting platforms, sweepers, camping, caravans, wheelchairs, and marine use.

Technical data:

• Manufacturer's designation: CPX 100-12
• Type of construction: AGM
• Nominal voltage: 12V
• Nominal capacity C5: 85Ah
• Nominal capacity C10: 90Ah
• Nominal capacity C20: 100Ah
• Internal resistance: approx. 5.5 mΩ
• Max. charging current: 15A
• Charging current: 15A
• Max. discharge current: 800A (5 sec.)
• Number of cycles: 800 to 1000 (at 50% discharge)
• Temperature range charging: 0°C to 40°C
• Temperature range discharging: -20°C to 50°C
• Full charge voltage: 14.4 - 15.0V
• Trickle charge: 13.5 - 13.8V
• Pole connection: M6 blind hole thread
• Housing material: ABS

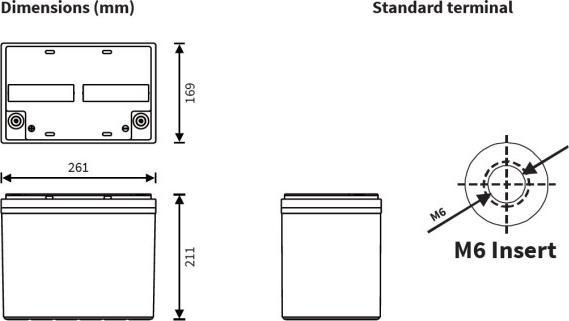

• Dimensions (LxWxH total): 261 x 169 x 211 mm
• Weight: 26.0 kg.
