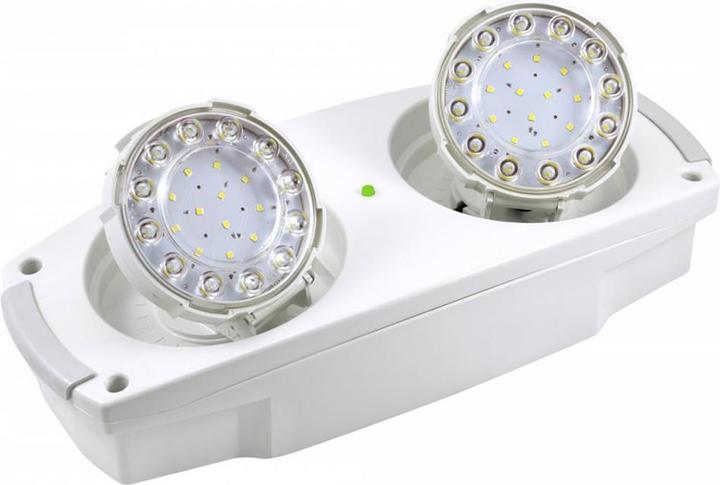

Ceag BL2MD-C3-AT

Ceag Notlichtsysteme safety light BL2MD-C3-AT
Manufacturer: Ceag Notlichtsysteme
Designation: BeamLite II safety light
Type: BL2MD-C3-AT
Mounting type: Wall surface-mounted/ceiling surface-mounted
Function: Escape route lighting
Suitable for labelling type: Other
With pictogram: No
Monitoring device: Automatic self-test
Switching type: Standby mode
With remote switch connection: Yes
Power supply: Decentralised (single battery)
Battery type: NiCd
Illuminant: LED not replaceable
With illuminant: Yes
Suitable for number of illuminants: 2
Lampholder: Without
Number of luminaire heads: 2
Housing material: Plastic
Housing colour: White
Cover material: Transparent plastic
Voltage type: AC
Rated voltage: 220-240 V
Control gear: LED control gear current-controlled
Light distributor: Refractor lens
Energy efficiency class of the permanently installed light source: A++, A+, A (LED)
Rated service life L80/B10 at 25 °C: 70,000 h
Protection class (IP): IP65
Impact resistance: IK07
Protection class: II
Luminaire with limited surface temperature "D symbol": No
Rated ambient temperature according to IEC 62722-2-1: 5-40 °C
Max. system power: 3.8 W
Rated luminous flux according to IEC 62722-2-1: 400 lm
Colour temperature: 6020-7040 K
Power factor: 0.8
Rated operating time: 3 h
Width: 178 mm
Height/depth: 106 mm
Length: 417 mm
Wiring type: Suitable for through-wiring
Number of poles: 2
Conductor cross-section: 1.5 mm²
Connection type: Plug-in connection

Ceag emergency lighting systems safety light BL2MD-C3-AT: Further details
BeamLite II 2x200 lm AT, emergency lighting duration 3 h (user-friendly selection via a push-button for configuring escape route or area illumination), 2x200 lm, protection class IP65, protection class 2. Flexible and adjustable LED spotlight, for wall or ceiling surface mounting (recessed mounting optional).
