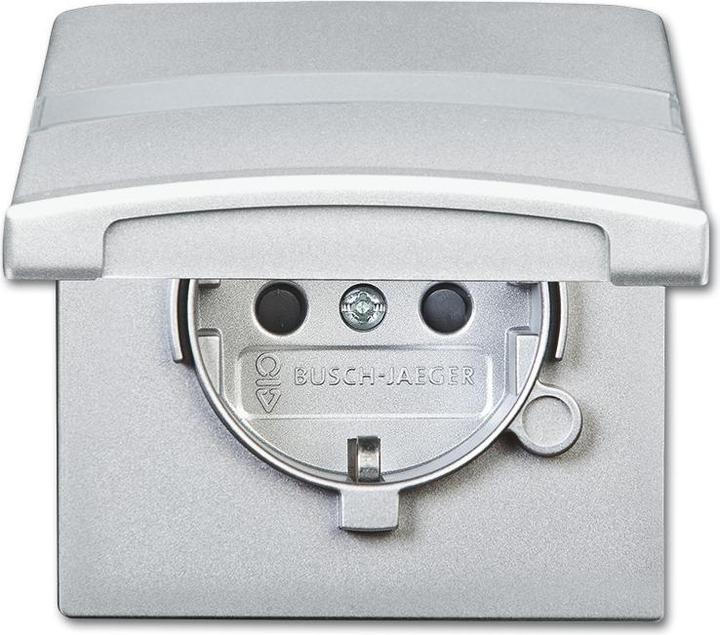

Busch-Jaeger Schuko socket insert

Busch-Jaeger Schuko socket outlet insert 20 EUGKBN-33-101

Manufacturer: Busch-Jaeger
Designation: Schuko socket outlet insert
IP Rating: IP44
Material: Aluminium silver
Type: 20 EUGKBN-33-101
Design: Schuko
Protective contact: Yes
Number of active contacts: 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of modules: 1
Number of phases: 1
Connection type: Plug-in terminal
With hinged cover: Yes
With increased contact protection: Yes
Text field/labeling area: Yes
Color: Aluminium silver
Lockable: No
Insulated installation: Yes
With function lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
Mounting type: Flush-mounted
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Painted
Surface finish: Matt
With loop-through function: Yes
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Impact resistance: IK04
Device width: 71 mm
Device height: 12 mm
Device depth: 32 mm
Min. device box depth: 40 mm
Cover: Central plate
Labeling field: 66.7 x 10 mm
Supplied with sealing ring
IP 44 only in combination with frame Allwetter 44®
2-pole (2 P + E)
EAN: 4011395172315.
