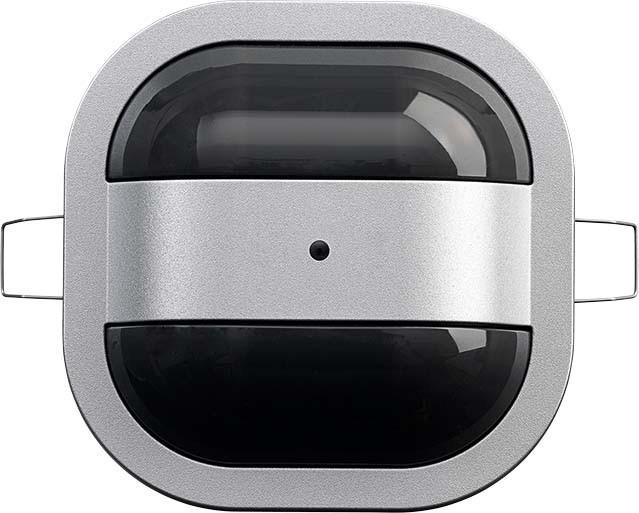

Busch-Jaeger Presence detector 6819/30-183

The Busch-Jaeger presence detector 6819/30-183 is a highly advanced device for the automatic control of lighting systems. It utilizes mixed light measurement to detect brightness and movement in the room, adjusting the lighting accordingly. With a high-load relay, the detector is suitable for operation with LED lights. The detection range is up to 12 meters for moving persons and up to 10 meters for seated persons when mounted at a height of 3 meters. The presence detector can be used in both semi-automatic and fully automatic modes and offers additional control options via a push-button input. Installation is straightforward with integrated spring clips, and the adjustment elements are easily accessible from the front, facilitating handling. The detector is designed for indoor use and is particularly well-suited for suspended ceilings.

• Detection range of up to 12 m for moving persons and 10 m for seated persons
• High-load relay enables operation with LED lighting
• Continuous light and continuous off functions for flexible use
• Teach-in function for adjusting the brightness switching threshold
• Remote controllable via IR service remote control.
