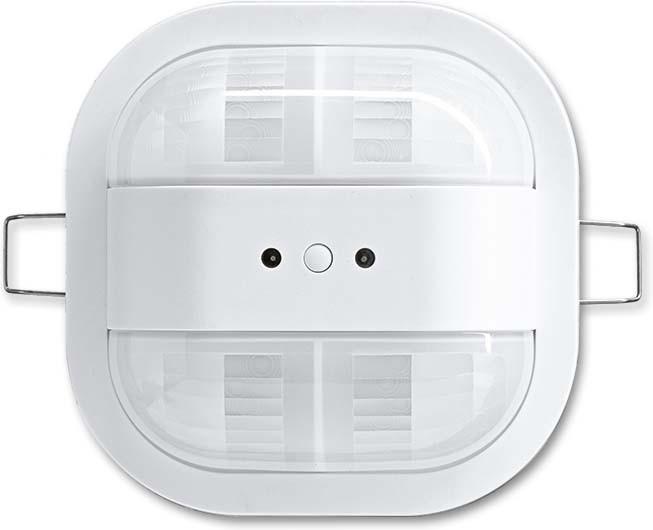

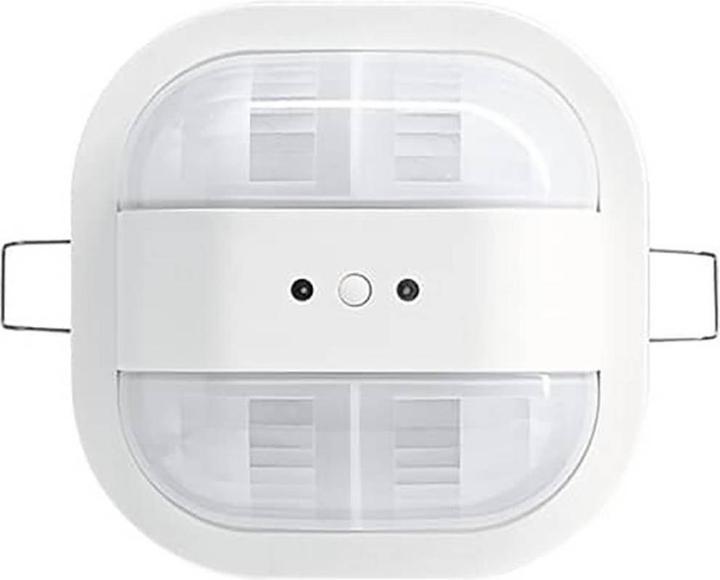

Busch-Jaeger Presence detector

Detection area: rectangular. At a mounting height of 3 m: approaching the sensor from the front, maximum 20 m x 3 m (maximum 10 m x 3 m per side). Walking across the sensor, maximum 30 m x 3 m (maximum 15 m x 3 m per side). With integrated KNX bus coupler. Installation height 27 mm. With 2 channels. For targeted switching on and off of light strips depending on room brightness. Control is also possible based on movement. The device can be used as a presence and/or motion detector. Sensor application with a 2-stage switching-off function. Sensor application with integrated monitoring function. Constant light switch with up to 2 independent channels. Constant light switch with a maximum of 2 outputs for brightness-dependent switching of two light strips in the room. Ceiling mounting on suspended ceilings with spring clips, on solid ceilings in surface-mounted housing, or on VDE flush-mounted boxes with an intermediate ring for VDE flush-mounted boxes. Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Cut-out size: Ø 68 mm. Not compatible with British Standard and VDE flush-mounted boxes. Recommendation: HaloX® 100 from Kaiser with corresponding cover or IBTronic H120-68 from Spelsberg. If needed, please refer to the current online catalog for software and description.

Type: 6131/50-24

Presence detector.
