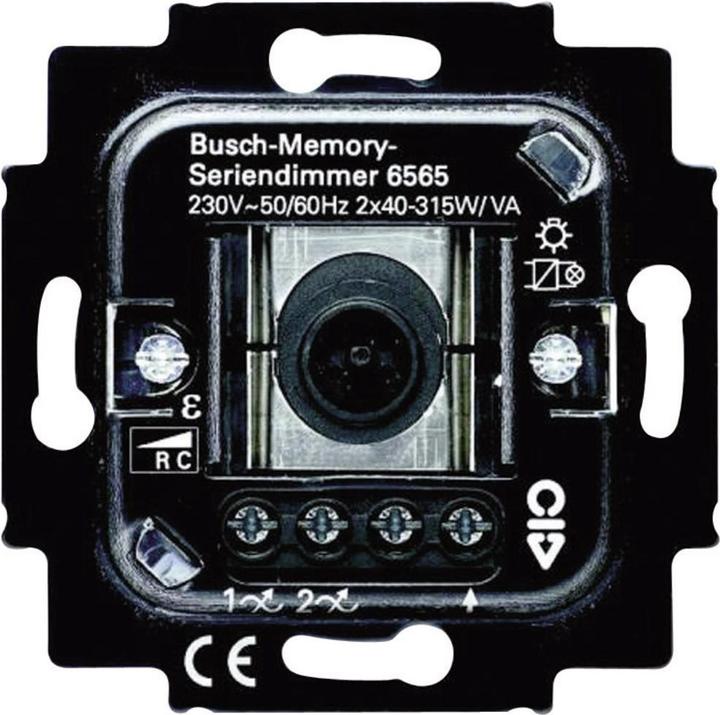

Busch-Jaeger Memory series dimmer

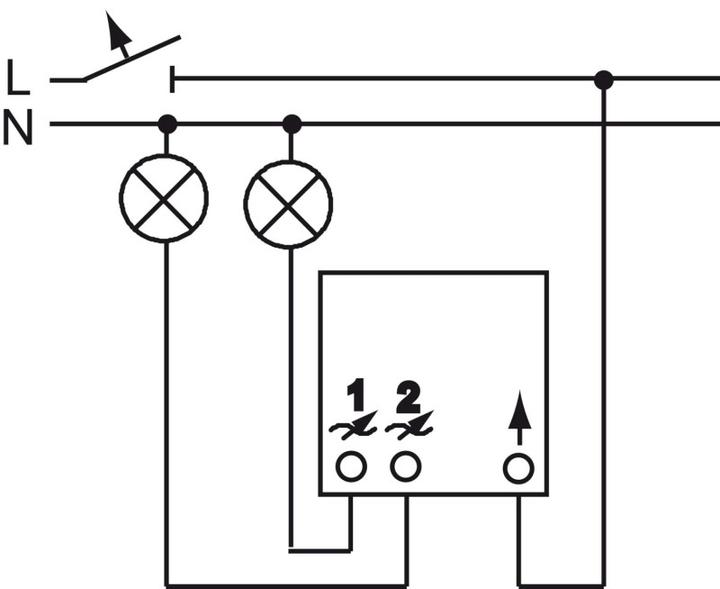

For switching and dimming two independent loads with phase section. Double pushbutton for incandescent lamps, 230 V halogen lamps, and low-voltage halogen lamps with electronic transformers. Compatible with control elements 6545-xxx. Without cover or central disc. Outputs: two independent dimming channels. Rated power: 40-315 W/VA per channel. Rated voltage: 230 V, +10% / -10%. Rated frequency: 50 Hz / 60 Hz. Not suitable for package and toroidal transformers. For electronic transformers, account for approximately 5% transformer losses. Only to be installed in conjunction with commercially available flush-mounted device boxes according to DIN 49073, part 1, or Busch-Jaeger art. no. 3040 flush-mounted box masonry, 3050 flush-mounted box cavity wall, or 3060 flush-mounted box concrete. Cannot be combined with push-button extension units.

Main features:

• Performance type: Dimmer and switch
• Design: Mounting type
• Control type: Touch
• Product color: Black
• Protection class (IP code): IP20
• RoHS-compatible: Yes
• Certification: CE
• Energy: AC input voltage 230
• AC input frequency: 50/60
• Ohmic load (max).
