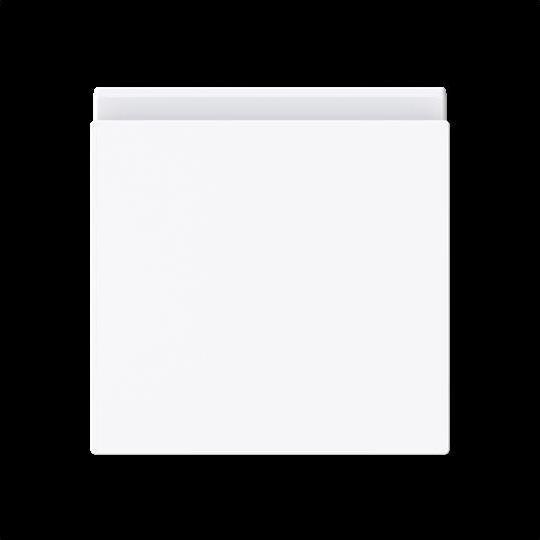

Busch-Jaeger Intermediate ring

Busch-Jaeger intermediate ring with foldable cover, model 2518-WD-44G. This intermediate ring is designed for both horizontal and vertical installation and accommodates a unit in any direction. It features a modular design with a module suitable for both horizontal and vertical installations. The ring is made of thermoplastic material, is halogen-free, and has a glossy white surface (similar to RAL 9016). It does not have an antibacterial treatment and is untreated to protect the surface.

The dimensions are as follows: width 63 mm, height 20 mm, depth 63 mm, installation width 55 mm, installation height 55 mm, and the diameter of the hole is 55 mm. This product is suitable for mounting central plates from the Busch-balance® SI series and includes a sealing ring, but no central plate. The protection class is IP44 and the impact resistance is rated at IK03.
