Product details

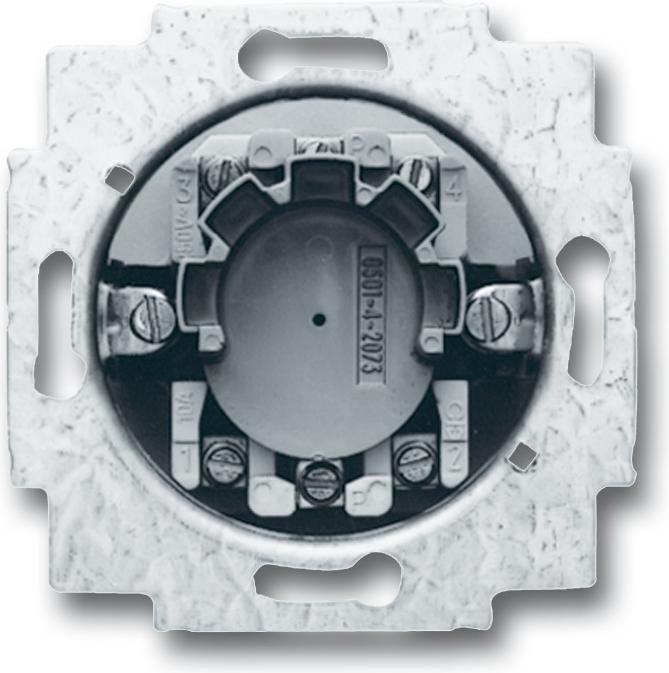

Busch-Jaeger insert 2723 USL-101

Manufacturer: Busch-Jaeger
Designation: Insert Jalousietas
Type: 2723 USL-101
Composition: Basic element
Design: Push button 2-pole
Number of poles: 1
Operation type: Key
Electrical and mechanical locking: Yes
Mechanically operable: Yes
Electronically operable: No
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoset
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Mounting type: Claw/screw mounting
Colour: White
RAL number (similar): 1013
Transparent: No
Text field/inscription area: No
Suitable for protection class (IP): IP20
Rated current: 10 A
Rated voltage: 250 V
Min. depth of device box: 40 mm

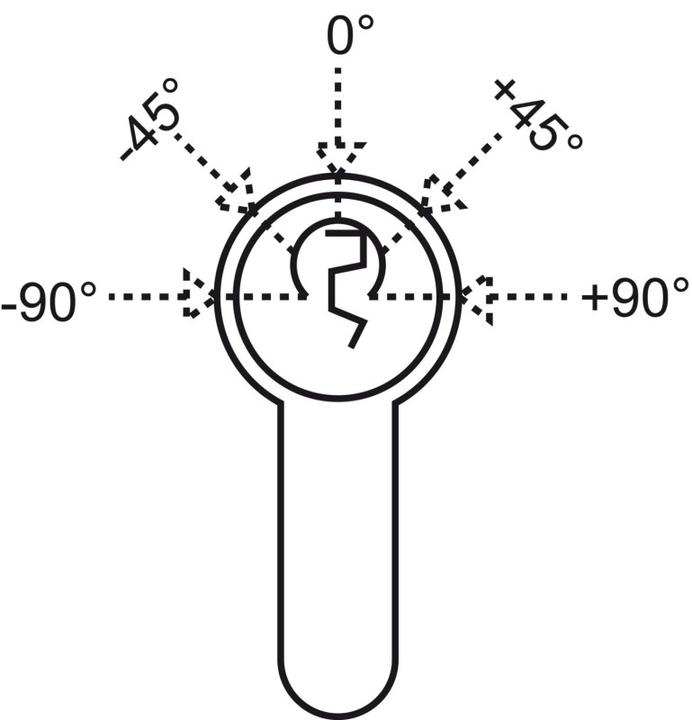

Further details: For profile half cylinder/button. Supplied without locking cylinder. Only in conjunction with commercially available flush-mounted device boxes according to DIN 49073 (box depth 60 mm). These blind switches/push-buttons prevent the running direction from being changed too quickly. Use lock cylinder according to enclosed drawing.
EAN: 4011395861301.

Key specifications

Light switch + socket Type
Blind switch
mounting style
Flush-mounted
Application range
Indoor
Number of cans
1 x
Number of switches
1 x
Exact colour description
White
Item number
21350198

General information

Manufacturer
Busch-Jaeger
Category
Light switches + Plug sockets
Manufacturer no.
2CKA001101A0906
Release date
29.6.2022

Colour

Colour
White
Exact colour description
White

Material

Material group
Plastic
Material
Plastic

Light switch + socket Features

Light switch + socket Type
Blind switch
mounting style
Flush-mounted

Application range

Application range
Indoor

Light switch properties

Light switch type
Button
Number of switches
1 x

Socket Properties

Additional properties
Halogen-free
Protection type (IP code)
IP20
Nominal current
10 Ah
Nominal voltage
250 V
Number of cans
1 x
connector type
Screw terminals

Smart home features

Smart Home
Not compatible
Requires Smart Home Hub
No

Origin

Country of origin
Czech Republic

Voluntary climate contribution

CO₂-Emission
Climate contribution

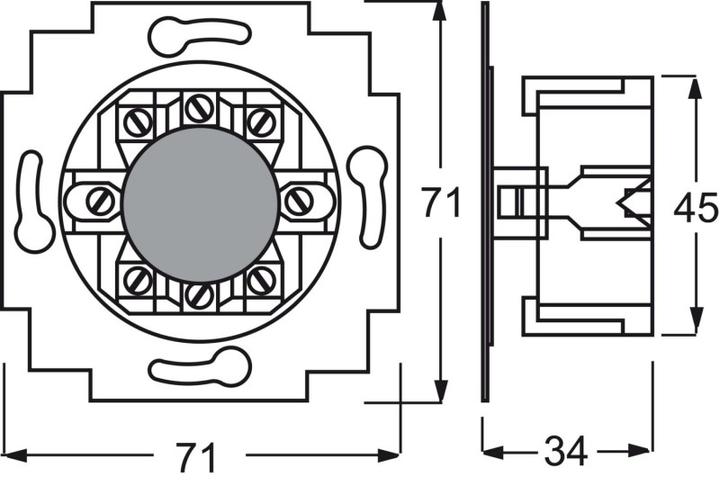

Product dimensions

Length
3.50 cm
Width
7.10 cm
Height
7.10 cm
Weight
0.08 kg
Stack depth
32 mm
