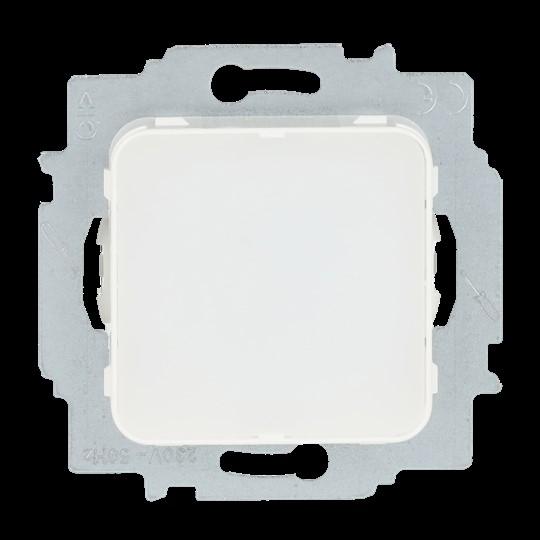

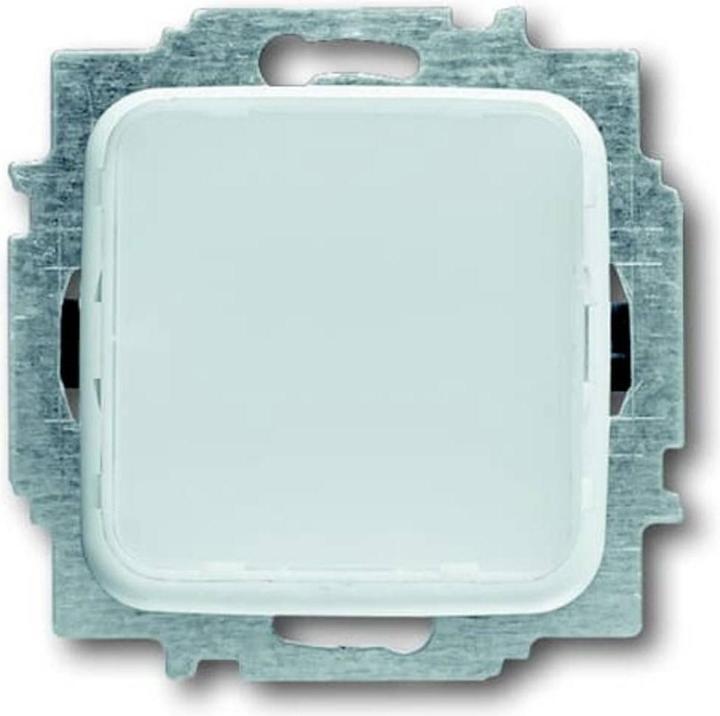

Busch-Jaeger Info light insert 2CKA001511A0115

Busch-Jaeger Info Light Insert 2062 U

Manufacturer: Busch-Jaeger
Designation: Info Light Insert LED, Info Field 43 x 43 mm
Type: 2062 U
Composition: Base Element
Socket: None
With Light Source: Yes
Light Source: Other
With Flashing Light: No
With Fixed Symbol/Print: No
With Replaceable Symbol: No
Used as Button: Normally Open
Mounting Type: Flush Mount
Mounting Method: Claw/Screw Mounting
Material: Plastic
Material Quality: Thermoplastic
Halogen-Free: Yes
Surface Protection: Untreated
Surface Finish: Matte
Color: White
RAL Number (similar): 9010
Transparent: No
Color of Light Source: Other
Suitable for Protection Class (IP): IP20
Nominal Voltage: 230 V
Max. Lamp Power: 0.5 W
Device Width: 71 mm
Device Height: 71 mm
Device Depth: 44 mm
Min. Depth of Device Box: 32 mm

Busch-Jaeger Info Light Insert 2062 U: Additional Details
Size of Info Field: 43 x 43 mm.
Long lifespan of the lighting body (LEDs).
Homogeneous illumination of the info field.
Color Temperature: 6,500 Kelvin (cool white).
Power Consumption: Less than 0.5 W.
Use relay inserts when switching via motion detectors or comfort switches.
Only switches without orientation lighting can be used to switch the LED UP insert.
The inscriptions and symbols are included with the central disc.
EAN: 4011395067451.
