Busch-Jaeger Guardian

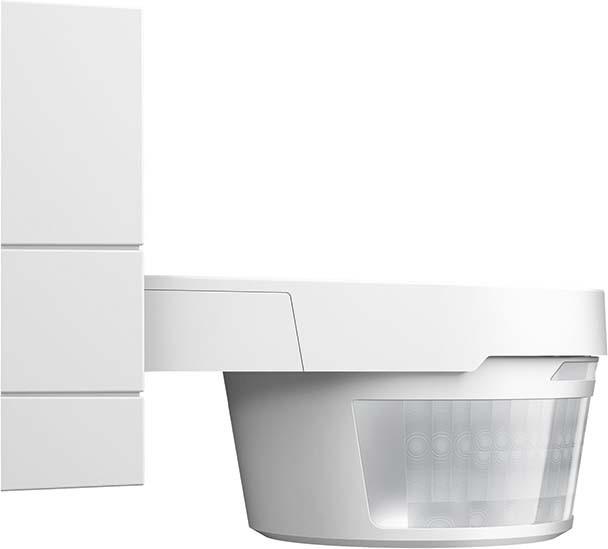

Busch-Jaeger Monitor WS 6179/02-204

Manufacturer: Busch-Jaeger
Designation: Monitor WS 220 MasterL. pre KNX
Type: 6179/02-204
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Design: Motion detector
Mounting type: Surface-mounted
Material: Plastic
Material grade: Thermoplastic
Surface protection: Untreated
Finish: Matt
Color: Alpine white
RAL number (similar): 9016
Transparent: No
With bus coupling: Yes
Extension unit input: Yes
Creep protection/back field monitoring: Yes
Operating mode switch: No
Animal track: Yes
Staircase monitoring: Yes
Response brightness adjustable: Yes
Teach function for response brightness: Yes
Switch-off delay self-learning: No
DALI-2 certified: No
Max. range to one side: 16 m
Max. range frontal: 16 m
Detection field diameter on floor: 16 m
Detection angle horizontal: 0°
Number of channels: 4
Min. duty cycle: 10 s
Max. duty cycle: 1092 min
Min. depth of device box: 0 mm

Busch-Jaeger Guard WS 6179/02-204: More details
With 4 motion channels. With 1 twilight/brightness channel with 3 switching thresholds. With 1 temperature channel with 3 switching thresholds. With 7 channel IR remote control. Can be remote controlled via IR hand-held transmitter KNX 6179 (included in delivery). With integrated KNX bus coupler. No additional auxiliary voltage required. Monitoring density: 92 sectors with 368 switching segments. Twilight sensor: Approx. 1-1000 lux. Brightness sensor: Approx. 1 - 80 kLux. Temperature sensor: Approx. -25 to +55 °C. Switch-off delay: Approx. 10 sec. to 1092 min. Sensor angle: 220°. Range: 16 m. If required, please refer to the current online catalog for software and description. Additional software PowerTool required. EAN: 4011395168578.
