Busch-Jaeger Frame
Only 1 piece in stock at supplier
Product details

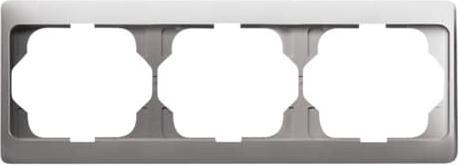

Busch-Jaeger Frame 3-fold 1723 KA-20
Manufacturer: Busch-Jaeger
Description: 3-fold frame platinum, horizontal
Type: 1723 KA-20
Number of units: 3
Mounting direction: horizontal
Number of units horizontal: 3
With mounting frame: no
Flush-mounted: yes
Suitable for underfloor duct box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/label area: no
Material: Metal
Material quality: Aluminum
Halogen-free: yes
Antibacterial treatment: no
Surface protection: anodized/eloxated
Surface finish: matte
Color: Platinum
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting
Width: 223 mm
Height: 81 mm
Depth: 11 mm
Installation width: 70 mm
Installation height: 54 mm
Drilling diameter (opening): 71 mm
Busch-Jaeger Frame 3-fold 1723 KA-20: additional details cover frame 3-fold frame horizontal, alpha platinum.
Colour | Silver |
Switch programme type | Covering frame |
Number of inlets | 3 x |
Width | 223 mm |
Item number | 21252538 |
Manufacturer | Busch-Jaeger |
Category | Accessories switch programme |
Manufacturer no. | 2CKA001754A4376 |
Release date | 22.6.2022 |
External links |
Colour | Silver |
Exact colour description | Platinum |
Material group | Metal |
Material | Metal |
Switch programme type | Covering frame |
Number of inlets | 3 x |
Mounting type | Flush-mounted |
Mounting direction | Horizontal |
Additional properties | Impact resistance |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 16.89 kg |
Climate contribution | CHF 0.40 |
Length | 11 mm |
Width | 223 mm |
Height | 81 mm |
Diameter | 71 mm |
