Busch-Jaeger Frame
Only 3 pieces in stock at supplier
Product details
Busch-Jaeger Frame 1-gang 1721-20
Manufacturer: Busch-Jaeger
Description: 1-gang frame platinum, alpha
Type: 1721-20
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/label area: no
Material: Metal
Material quality: Aluminum
Halogen-free: yes
Antibacterial treatment: no
Surface protection: anodized/eloxated
Surface finish: matte
Color: Platinum
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting

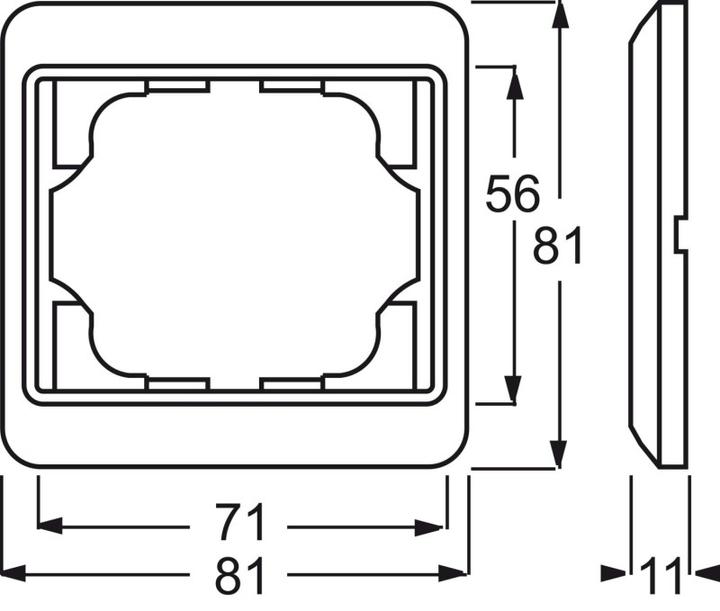

Width: 81 mm
Height: 81 mm
Depth: 11 mm
Installation width: 70 mm
Installation height: 54 mm
Diameter of hole (opening): 71 mm.
Colour | Silver |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Width | 81 mm |
Item number | 20021744 |
Manufacturer | Busch-Jaeger |
Category | Accessories switch programme |
Manufacturer no. | 2CKA001754A1611 |
Release date | 16.3.2022 |
Colour | Silver |
Exact colour description | Platinum |
Material group | Metal |
Material | Metal |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Mounting type | Adhesive |
Mounting direction | Horizontal |
Additional properties | Antibacterial |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 1.32 kg |
Climate contribution | CHF 0.11 |
Length | 11 mm |
Width | 81 mm |
Height | 81 mm |
Diameter | 71 mm |
Weight | 20 g |
