Busch-Jaeger BUSC Lift control

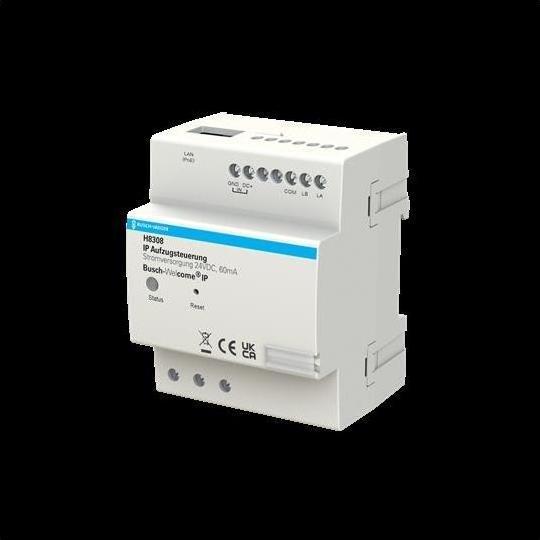

Busch-Jaeger IP Elevator Control H8308-03

Manufacturer: Busch-Jaeger
Description: IP Elevator Control
Type: H8308-03
Width: 65 mm
Height: 72 mm
Depth: 90 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

The elevator control allows for automated calling of the elevator upon door opening. The elevator can then only travel to the authorized floor, preventing stops at unauthorized floors. In addition to the entrance function, the elevator can also be called from the living unit, for example, from a Busch-Welcome® IP IPtouch Panel.

Connection to the Busch-Welcome® IP network and via RS485 to the relay module for elevator control (Art. M2307-03). Up to 16 relay modules for elevator control can be connected to an IP elevator control module. Wizard-assisted commissioning. Power supply via Power-over-Ethernet (PoE) 802.3af.

EAN: 6955891821194.
