Bticino 364231

Flex ONE Audio Set with LINEA 3000 Door Station and CLASSE 100 A16M House Station. The set, utilizing 2-wire technology, includes all necessary components for setting up a single-family home intercom system. Expansion to a two-family home can be achieved by adding a second house station of your choice.

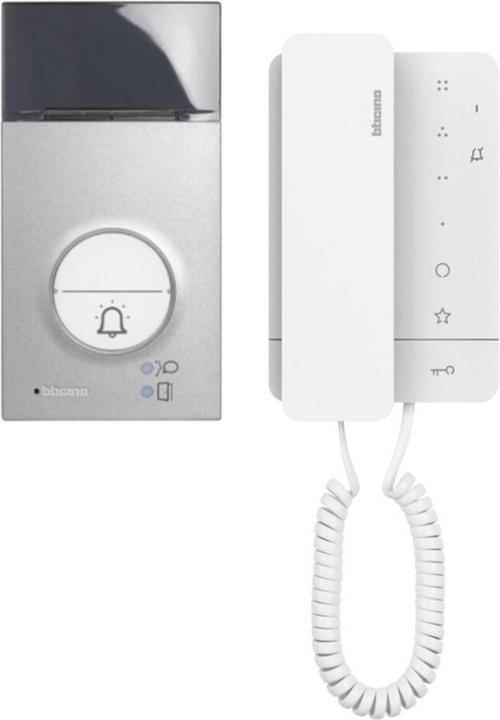

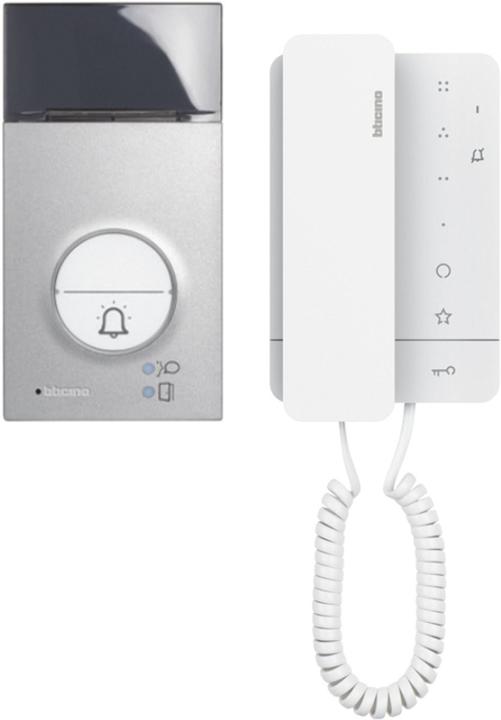

The set includes:

• 1 surface-mounted door station LINEA 3000 with a front panel made of ZAMAK. It comes standard with 2 call buttons and can be configured as either a single-family or two-family home using a slide switch. Equipped with a nameplate including brightness-controlled backlighting (white LEDs) and status LEDs for conversation and door opener. The door opener (max. 30 Ohm internal resistance) is connected directly to the terminals S+ and S (18 V, 4 A peak current, 250 mA holding current). The door station can be installed flush-mounted using a junction box and accessories. Protection class IP 54, impact resistance IK 10. Dimensions: W × H × D: 100 × 190 × 26 mm. Color: similar to RAL 9007.
• 1 audio power supply.

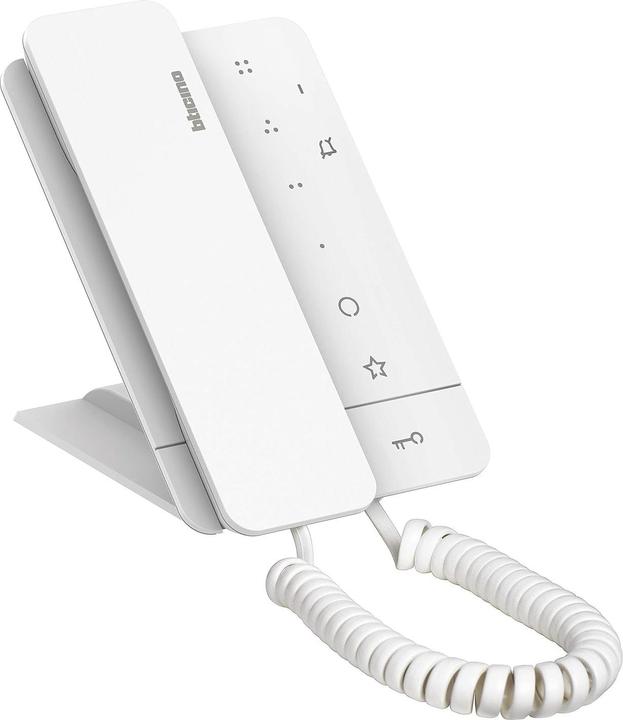

• 1 surface-mounted house station CLASSE 100 A16M with handset. It features 3 sensor buttons for: opening the door, turning on the stairwell light (activator required), and switching the door station on or off, as well as 4 freely configurable additional buttons (e.g., internal communication, additional door opener, etc.). 16 melodic ringtones can be set. Includes doctor call/door mat function. For door/floor calls with call distinction. The volume of the ringtone is adjusted using a side control. LED display for: ringtone deactivation and door opener status. Surface-mounted installation using the included wall bracket. A table accessory is available separately. Connection for BUS, floor call, and additional bell. Dimensions W × H × D: 102 × 169 × 29 mm. Wiring diagram and operating instructions included.
