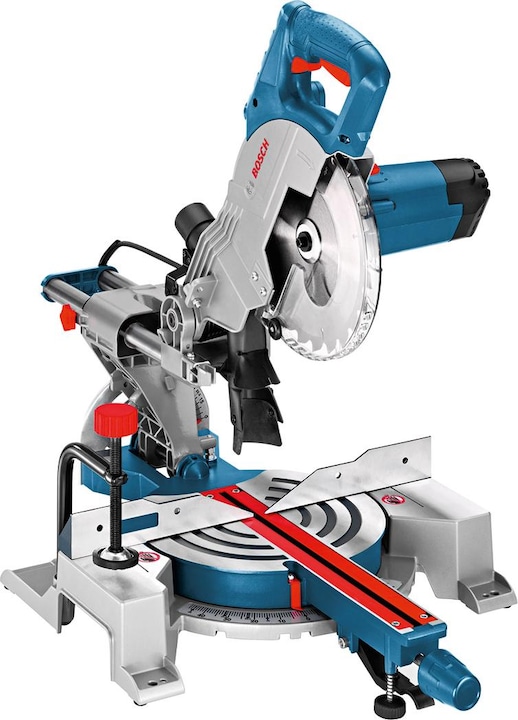

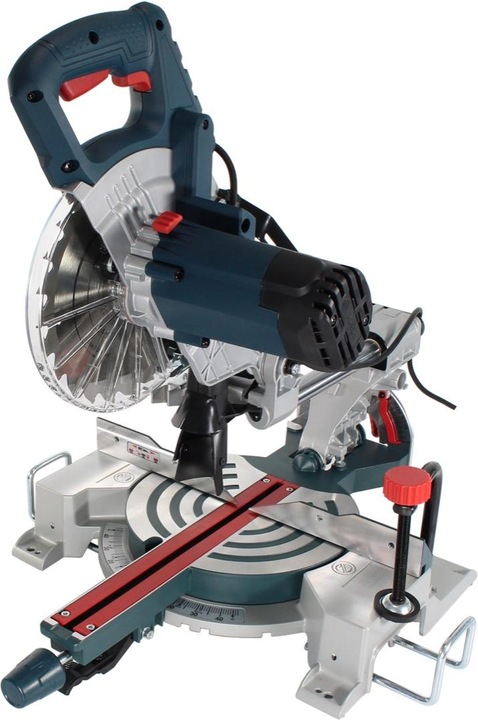

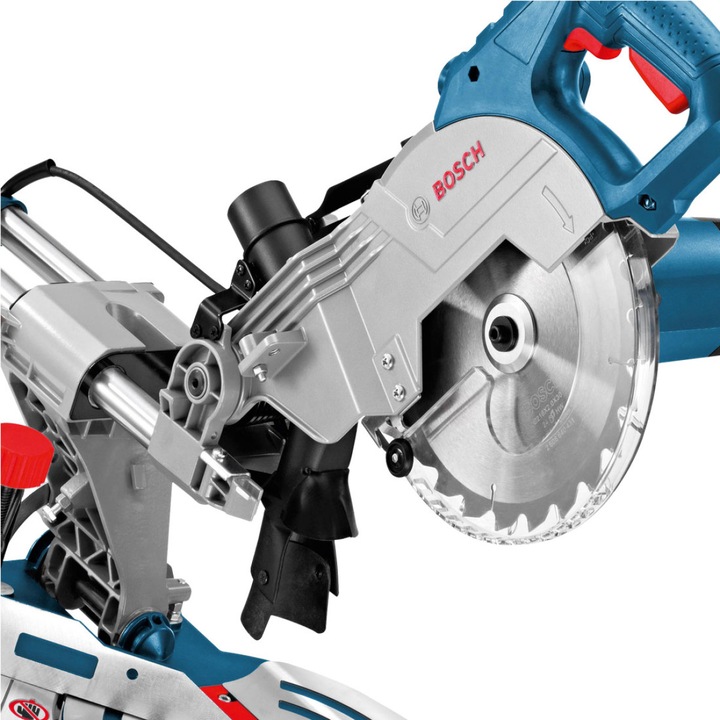

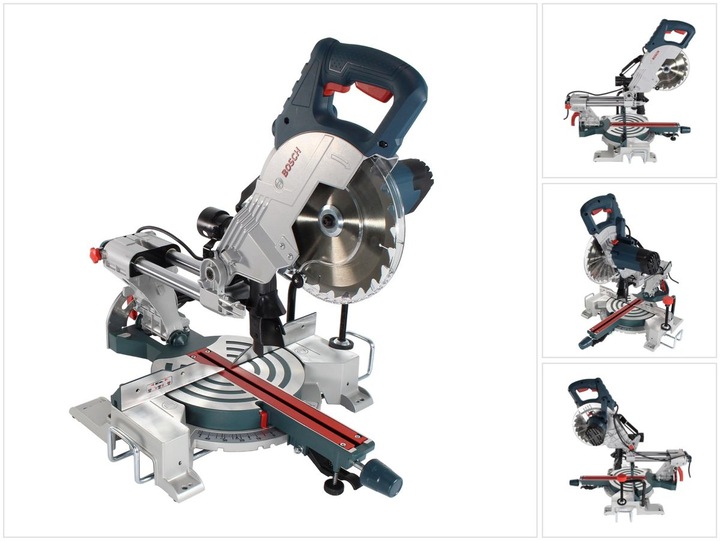

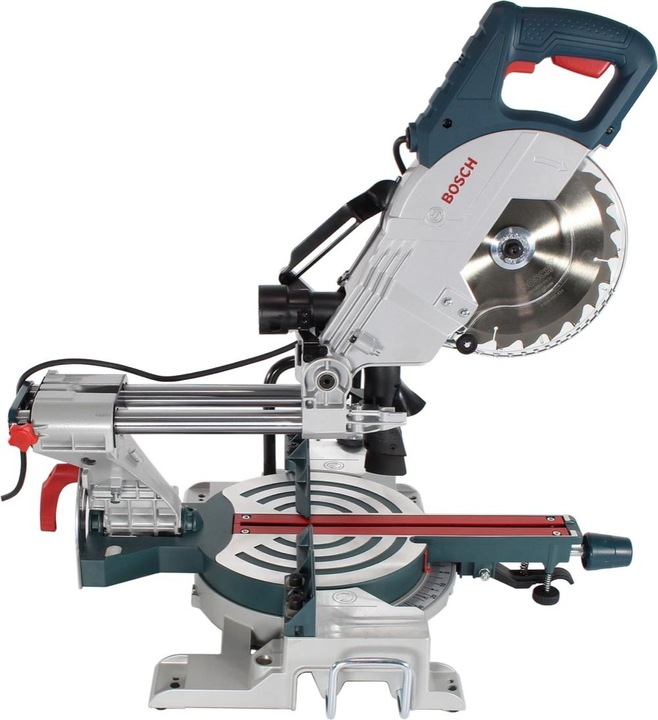

The Bosch GCM 800 SJ Professional miter saw is compact and offers easy transport to the job site. It features improved dust management for healthy and clean working conditions. The horizontal cutting capacity is 270 mm. The Bosch GCM 800 SJ Professional provides maximum precision thanks to its powerful 1,400-watt motor. Technical specifications: - Voltage: 220 - 240 V - Cutting capacity at 0°: 70 x 270 mm - Cutting capacity at 45° miter: 70 x 190 mm - Cutting capacity at 45° bevel: 48 x 270 mm - Miter adjustment: 47° L / 47° R - Bevel adjustment: 45° L / 0° R - No-load speed: 5,500 min-1 - Blade diameter: 216 mm - Blade bore diameter: 30 mm - Weight: 13.5 kg - Rated input power: 1400 W. Included in delivery: Allen key, circular saw blade 216 x 30 mm.
Nominal diameter | 216 mm |
Max. depth of cut at 90° | 270 mm |
Mains voltage | 230 V |
Power | 1400 W |
Documents | |
Item number | 6514366 |
Manufacturer | Bosch Professional |
Category | Chop saw + mitre saw |
Manufacturer no. | 0601B19000 |
Release date | 5.9.2017 |
Colour | Blue, Silver |
Exact colour description | Black, Blue, Grey, Red |
Suitable for | Wood |
Max. tilt adjustment | 47° |
Tool holder | Spindle lock |
Mounting hole | 30 mm |
Nominal diameter | 216 mm |
Max. depth of cut at 90° | 270 mm |
Max. Depth of cut at 45 | 70 mm |
Power supply | Electrical connection |
Mains voltage | 230 V |
Cable length | 0.22 m |
Power | 1400 W |
Max. Idle speed | 5500 rpm |
Max. noise level | 93 dB |
Sound power level (LWA) | 106 dB |
Material group | Metal, Plastic |
Material | Metal / plastic |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x saw blade (2608640431) |

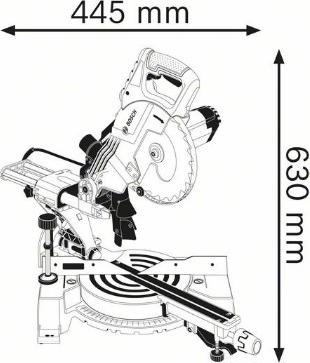

Length | 445 mm |
Width | 445 mm |
Height | 630 mm |
Weight | 13.50 kg |
Length | 80 cm |
Width | 48 cm |
Height | 44 cm |
Weight | 18.12 kg |
