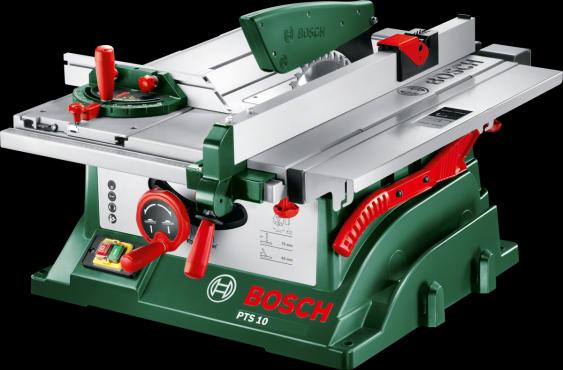

Bosch Home & Garden Pts 10

Powerful, robust and precise.

Key product features:

• Powerful 1,400 watt motor for the toughest applications
• Cutting height up to 75 mm
• Integrated sliding carriage with angle stop for mitre cuts up to ± 60° for exact sawing of wide workpieces

Further product advantages:

• Self-adjusting rip fence for precise longitudinal cuts
• Side and rear table extension with additional parallel stop for comfortable sawing of larger workpieces
• Infinitely variable adjustment of the saw blade up to 75 mm height and 45° inclination left
• Possibility of connecting a vacuum cleaner for a clean working environment
• Large aluminium table surface for safe and comfortable working
• Soft start for smooth motor start-up and vibration-free operation

Technical data:

• Power consumption: 1,400 W
• Idle speed: 5,000 min-1
• Circular saw blade nominal diameter: 254 mm
• Circular saw blade bore diameter: 30 mm
• Cutting depth at 90°: 75 mm
• Cutting depth at 45°: 63 mm
• Machine weight: 26 kg

Scope of delivery:

• Suction hose
• Base plate with pre-assembled Phillips screws
• Rip fences
• Ring spanner
• Sliding cane
• Protective cover with fixing set
• Splitting wedge
• Table extension with fixing set
• Angle stop with fixing set
• Additional stops.
