Blum TIP ON 956A

Comfort of opening with integrated door gap adjustment

With TIP-ON, Blum's mechanical opening support, handle-less fronts open almost by themselves with a light tap. A gentle push is all that is needed to close them. For optimal movement comfort with doors, TIP-ON is combined with the proven CLIP top hinges. AVENTOS lift systems can also be implemented with TIP-ON. The door gap adjustment is integrated in all versions (+4/-1 mm).

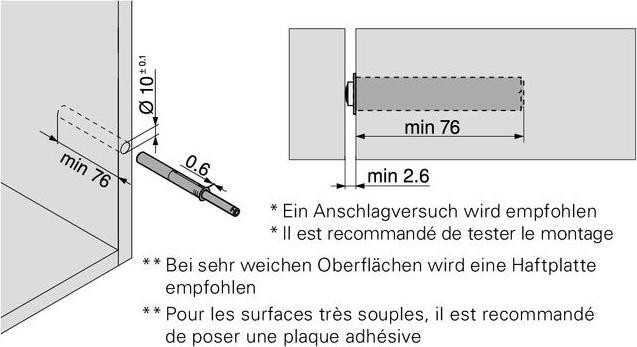

Adjustment range of +4/-1 mm. For hinges with spring. For drilling ø 10 x 76 mm. Ejection travel approximately 38 mm. Installation on the handle side.

Part number: 956A1006, Type: TIP-ON 956A, Material: Plastic, Product type: Furniture fitting, Brand: Blum, Drill ø (mm): 10, Color: plating gray, Quantity (ST): 1.
