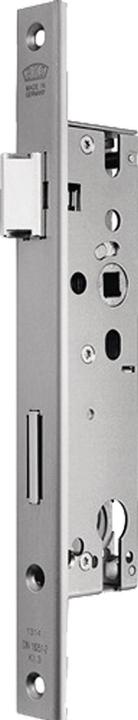

BKS Panic frame mortise lock B 1316 E DIN left 24/270/40/92/9 mm angular

The panic pipe frame insert lock B 1316 E DIN left is a reliable solution for single-leaf doors that offers both security and functionality. It is specifically designed for use in fire protection doors and meets the requirements of the standards DIN 18251-2 Class 3 and EN 12209. This lock is equipped with a reversible function that allows for easy handling. The construction includes a latch made of precision casting and a bolt made of zinc die-casting, ensuring high stability and durability. With a bolt throw of 20 mm and a distance of 92 mm, it provides an effective security solution. The lock is also approved for emergency exits and panic doors according to EN 179 and EN 1125, making it an ideal choice for security-sensitive applications.

• Approved according to DIN 18251-2 Class 3 and EN 12209 for fire protection doors
• Suitable for emergency exits and panic doors according to EN 179 and EN 1125
• Latch made of precision casting and bolt made of zinc die-casting for increased stability
• Single-turn lock bolt with a 20 mm bolt throw
• Continuous nut with 9 mm square for easy handling.
