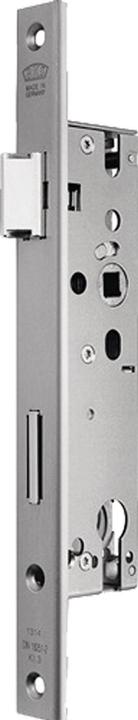

BKS Panic frame mortice lock B 1316 E DIN left 24/245/40/92/9 mm angular

The panic frame insert lock B 1316 E from BKS is a reliable solution for single-leaf doors that offers both security and functionality. This lock is specifically designed for use in fire protection doors and meets the requirements of DIN 18251-2 Class 3 as well as EN 12209. It is also approved for emergency exits according to EN 179 and panic doors according to EN 1125. The construction includes a latch made of precision casting and a bolt made of zinc die-casting, ensuring high stability and durability. With a bolt throw of 20 mm and a distance of 92 mm, the lock provides an effective security solution. The changeable function E allows for flexible handling, while the continuous square and the 9 mm square ensure easy installation and operation.

• Approved for fire protection doors, emergency exits, and panic doors
• Latch made of precision casting and bolt made of zinc die-casting
• Bolt throw of 20 mm for increased security
• Single-turn lock bolt for easy handling
• Backset measurement of 15 mm for versatile applications.
