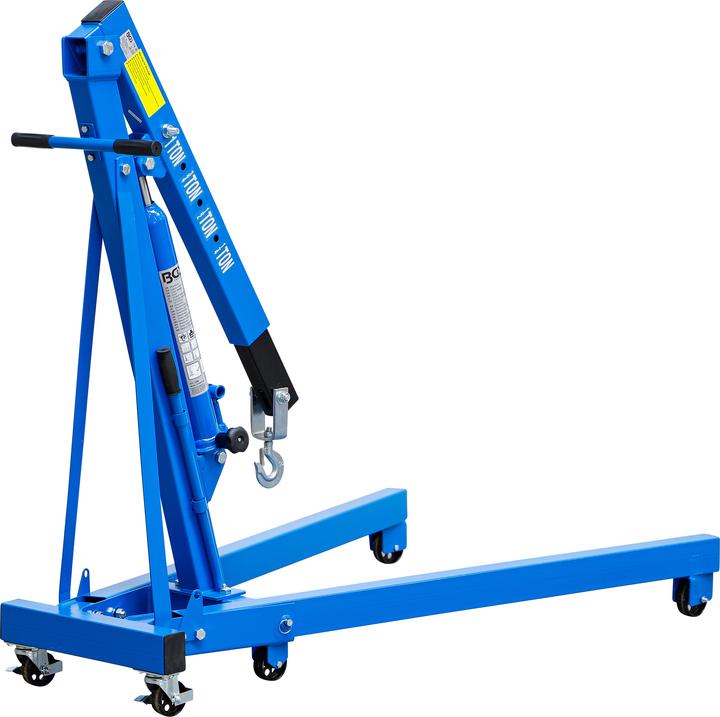

BGS Engine Crane 1000 kg

heavy duty crane for daily garage use
suitable as a engine crane, for aligning components and machines or for lifting and holding loads in everyday workshop routine
foldable for easy transport and space-saving storage
with hand lever pump
easy lifting and lowering by hydraulic cylinder
easy to move in connection with 4 castors and 2 heavy duty swivel castors
load carrier on the boom with stable chain and safety load hook
telescopic crane boom with 4-way adjustment options
adjustable lifting arm length in following 4 positions:
crane arm position 1: 900 mm, max. load 1000 kg
crane arm position 2: 990 mm, max. load 750 kg
crane arm position 3: 1080 mm, max. load 500 kg
crane arm position 4: 1170 mm, max. load 250 kg
rated load: max. 1000 kg
lifting range: 160 - 2040 mm
crane arm length: max. 1170 mm
stroke (max. rated load): 1860 mm
height (max. rated load): 415 mm
opening width of hook: 18 mm
front wheel dimensions: Ø 89 x 30 mm
middle wheel dimensions: Ø 76 x 30 mm
rear wheel dimensions: Ø 76 x 30 mm
over all dimension (lowest position): 1515 x 1050 x 1445 mm
