Product details
SB 610 Technical Data
Working Length: 610 mm
Max. Sheet Thickness (400 N/mm²): 1.0 mm
Max. Opening Width: 24 mm
Bending Angle: 0 - 135°
Working Height with Base Frame: 870 mm
Width: 820 mm
Depth: 280 mm
Height: 370 mm
Weight approx.: 44 kg (without base frame)
Features:
Manual bending machine for standard tasks
Swinging motion of the bending arm via a handle
Upper arm rail with a peak angle of 45°
Affordable entry-level model for craftsmen
User-friendly upper arm adjustment via eccentric

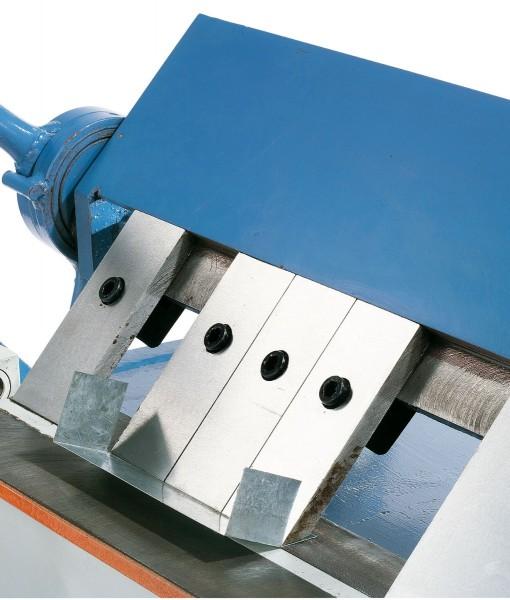

Removable segments for bending boxes
Secure clamping of the sheet metal using a special clamping device
Scope of Delivery:
Segmented upper arm
Bending segments 26 | 52 | 76 | 203 | 253 mm
Subject to changes and errors.
Diameter | 24 mm |
Length | 610 mm |
Item number | 54071857 |
Manufacturer | Bernardo Cantina |
Category | Vices + Clamps |
Manufacturer no. | 06-1315B |
Release date | 17.1.2025 |
Type of clamping device | Bending machine |
Diameter | 24 mm |
CO₂-Emission | |
Climate contribution |
Length | 610 mm |
Width | 820 mm |
Height | 370 mm |
Weight | 44000 g |
