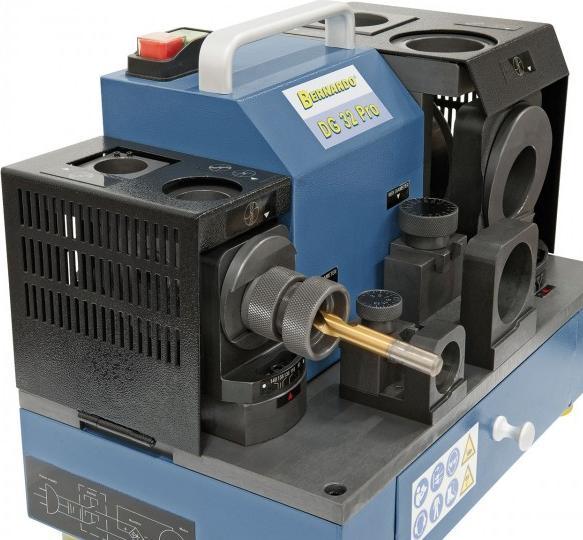

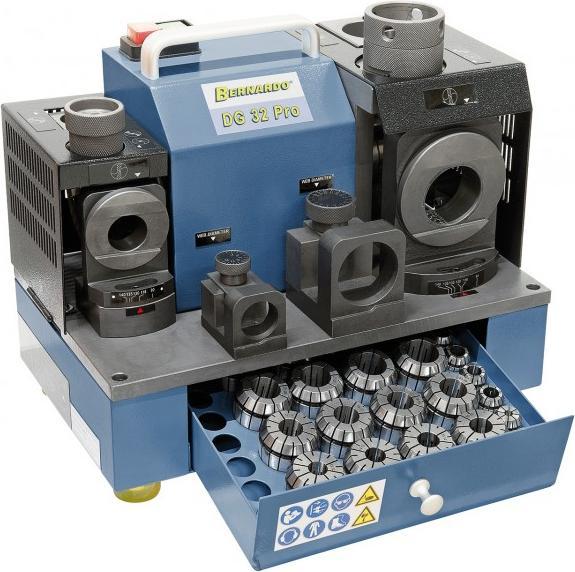

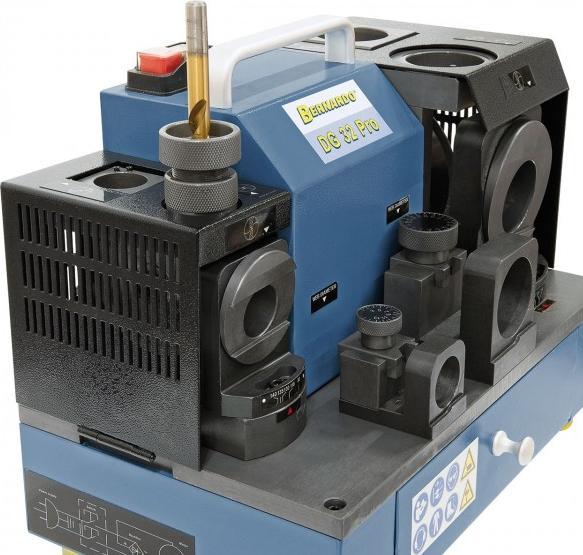

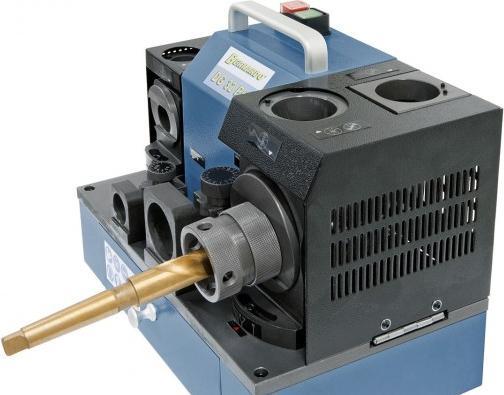

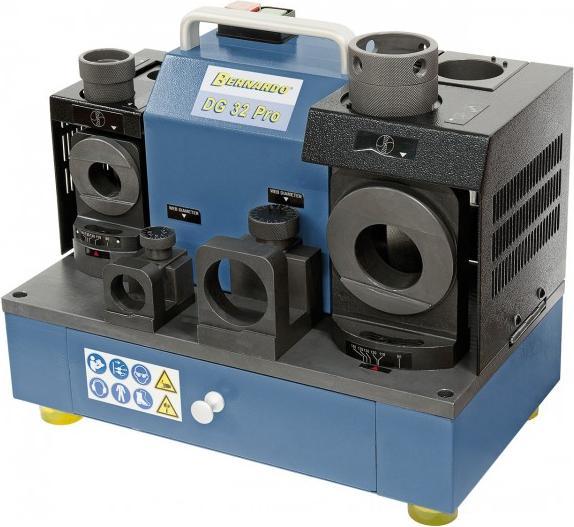

Bernardo Cantina Bernardo - Bohrerschleifmaschine DG 32 Pro

The DG 32 Pro drill sharpening machine is suitable for all common 2-flute spiral drills made of HSS, cobalt, or carbide, ranging from 2 to 32 mm. The advantage of this model is the ability to grind the cutting edges, ensuring perfect drilling results. High efficiency is achieved through the fast grinding process at low investment costs.

Technical specifications:

• Drill diameter: 2 – 32 mm
• Point angle: 90° - 135°
• Speed: 4800 rpm
• Motor power: 0.25 kW
• Voltage: 230 V
• Length: 350 mm
• Width: 210 mm
• Height: 305 mm
• Weight: approx. 32 kg

Features:

• Includes a centering device for better alignment of the drill tip on the workpiece and reduced feed force required
• 30 ER collets included, which are also suitable for clamping intermediate sizes
• Additional station for grinding the drill cutting edges (relief angle)
• Universally adjustable point angle from 90° - 135°
• Rotor with precision ball bearing ensures high running smoothness
• Fast and precise work results due to easy operation
• Vibration-free operation due to high self-weight and rubber feet

Included in delivery:

• Diamond grinding wheel SBC
• ER 20 collets, 3 – 12 mm, 10 pieces (3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 mm)
• ER 40 collets, 13 – 32 mm, 20 pieces (13 / 14 / 15 / 16 / 17 / 18 / 19 / 20 / 21 / 22 / 23 / 24 / 25 / 26 / 27 / 28 / 29 / 30 / 31 / 32 mm)
• Collet holder ER 20 or ER 40

Available special accessories:

• Diamond grinding wheel SDC (12.1-32 mm) for DG 32 MD/DG 32 Pro
• CBN grinding wheel (12.1-32 mm) for DG 32 MD/DG 32 Pro
• Diamond grinding wheel SDC (3-12 mm) for DG 13 MD/DG 32 Pro
• CBN grinding wheel (3-12 mm) for DG 13 MD/DG 32 Pro

Subject to changes and errors.
