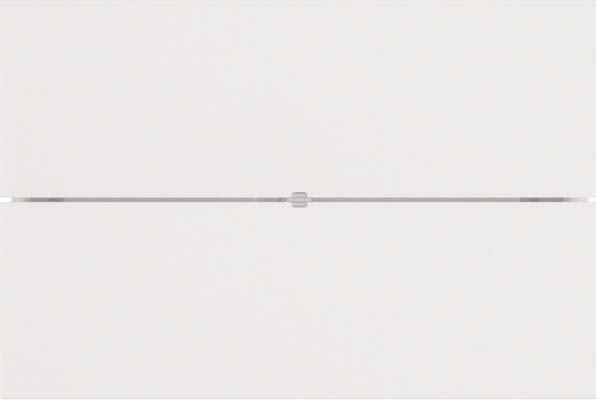

Berker Push-button 2gang comfort 75162599

Touch sensor 2-fold Comfort B.IQ in polar white, matte finish. The Touch sensor 2-fold Comfort B.IQ features a tamper protection mechanism as well as an operating LED and four status LEDs. It is designed for flush-mounted installation and serves as an instabus user module that is plugged onto a bus coupler. The tamper protection is achieved by securing the touch sensor to the bus coupler with screws. Data exchange between the touch sensor and the bus coupler occurs via the user interface (AST). Each button press on the touch sensor prompts the bus coupler to generate a telegram and send it onto the bus. The telegram format depends on the application parameterization. Depending on the selected parameterization, switching, dimming, blind control, and value transmitter functions can be combined in any way.

Application features:

• Button functions: buttons, switching, toggle operation, dimming, single and double surface operation, blind control single and double surface operation, value transmitter/light scene secondary control with function value transmitter 1 byte, light scene recall with/without memory function, brightness value transmitter, temperature value transmitter, value transmitter 2 bytes, cyclic sending, control function, forced control.
• Additional functions: Two operating levels, second operating level with selectable reduced functionality, switching between operating levels via object.
• LED: Status LED for each button, operating LED.
• Tamper protection: with mechanical tamper protection, with software-controlled tamper protection.
