Berker KNX radio wall transmitter 2gang 85656189

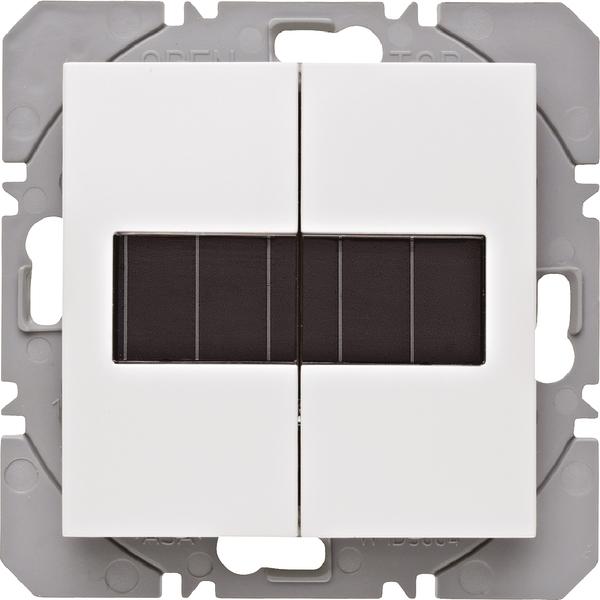

KNX Wireless Wall Switch 2-fold flat Solar quicklink S.1/B.3/B.7 polar white, glossy. The KNX Wireless Wall Switch flat Solar quicklink is used for remote control of assigned KNX wireless receivers. It allows for flat surface mounting and combination expansion, with power supplied via solar cells. Integration is achieved through the KNX wireless media coupler AP into the KNX-TP system. The quicklink configuration is tool-free via buttons and LED display, with the upper and lower control surfaces being freely configurable and able to be set as single or double surface control. Additionally, the device features a reset function to factory settings.

The quicklink functions include: Switching, Dimming, Blinds, 2 Scenes, Timer, Button Switch, and Memory.

Additional easy functions: +6 Scenes, On/Off mode, 1-button control Up/Down.

ETS additional functions: +6 Scenes, On/Off mode, Button, Status display, Dimming value.
