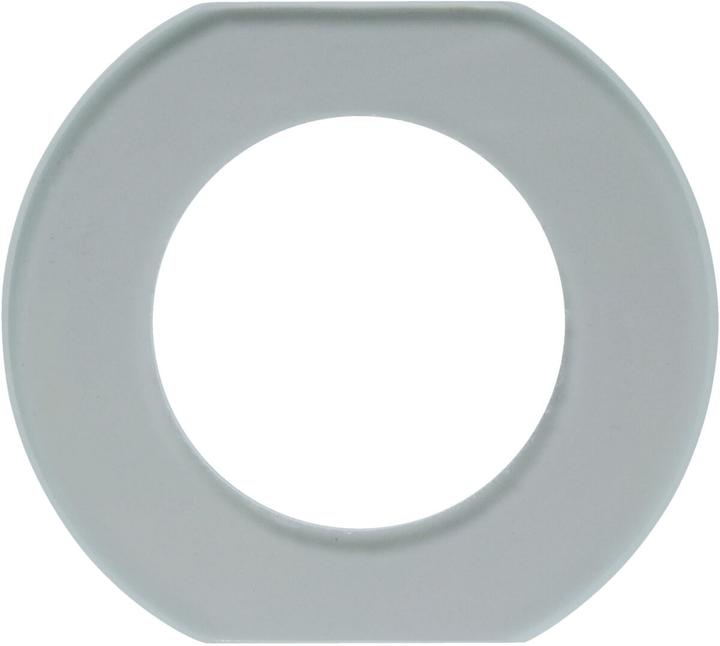

Berker Glass center frame

Berker Glass Intermediate Frame 109300

Manufacturer: Berker
Description: Clear Glass Intermediate Frame
Type: 109300
Number of Units: 1
Mounting Direction: Horizontal and Vertical
Number of Units Horizontal: 1
Number of Units Vertical: 1
With Mounting Frame: No
Flush Mounting: Yes
Suitable for Flush Floor Channel Box: No
Suitable for Device Installation Channel: Yes
Suitable for Built-in Installation: Yes
Text Field/Label Area: No
Material: Glass
Material Quality: Glass
Halogen-Free: Yes
Antibacterial Treatment: No
Surface Protection: Untreated
Surface Finish: Glossy
Color: Colorless
Transparent: No
With Flip Cover: No
Protection Class (IP): IP20
Impact Resistance: IK02
Mounting Type: Clamp Mounting
Width: 80 mm
Height: 77 mm
Depth: 5.8 mm
Installation Width: 0 mm
Installation Height: 0 mm
Drilling Diameter (Opening): 45 mm

Berker Glass Intermediate Frame 109300: Additional Details
Single-frame glass intermediate frame, clear series. Glass intermediate frame for combination mounting, flush installation of all UP inserts with central piece, polar white and white plastic spacers included. Flush installation, special program. Material: tempered glass.
