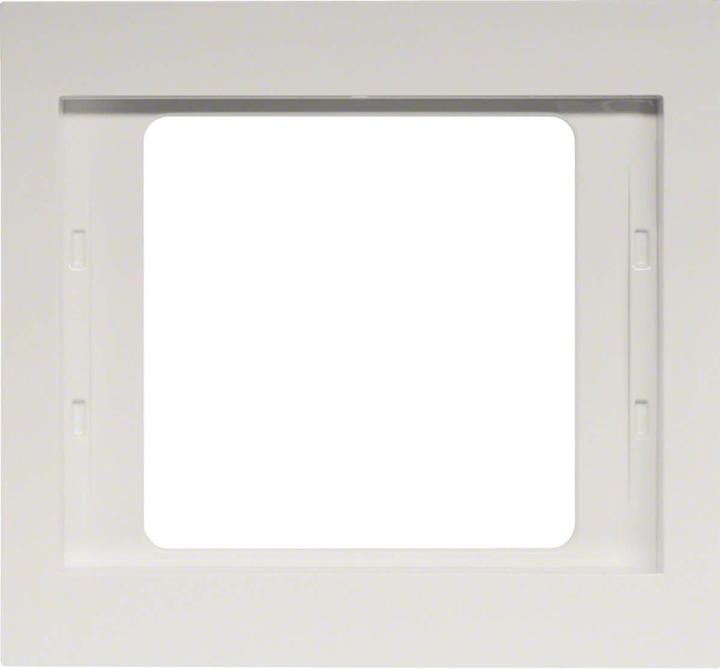

Berker Frame

Berker frame 1f. pws/gl 13137009

Manufacturer: Berker
Designation: Frame 1f. pws/gl
IP Rating: IP44
Type: 13137009
Number of units: 1
Mounting direction: Horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
Number of switch inserts: 1
Flush mounting: Yes
Suitable for underfloor trunking: No
Suitable for device installation trunking: Yes
Suitable for recessed installation: Yes
Text field/inscription area: No
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Untreated
Surface finish: Glossy
Color: Polar white
RAL number (similar): 9010
Transparent: No
With hinged cover: No
Protection class (IP): IP20
Mounting type: Clamp mounting
Width: 87 mm
Height: 80.5 mm
Depth: 9.9 mm
Installation width: 71.5 mm
Installation height: 56.5 mm
Diameter hole (opening): 0 mm

Frame 1gang, K.1, polar white glossy. Cover frame for vertical and horizontal mounting. For use with polar white center plates. Flush-mounted installation, surface program, 1-gang. Material: Plastic, thermoplastic, shatterproof, high-gloss surface, halogen-free. EAN: 4011334263173.
