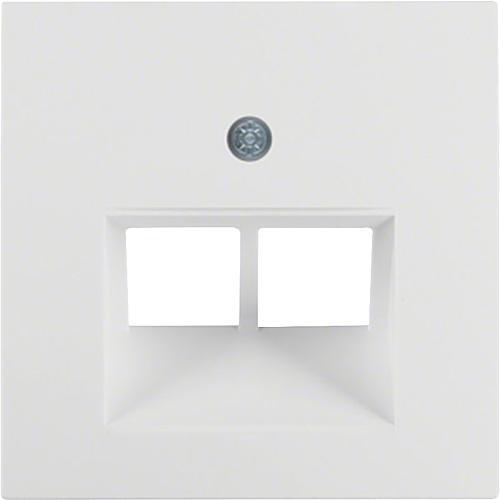

Berker Central piece

Berker Central Piece 14098989

Manufacturer: Berker
Description: Central piece for UAE/E-DAT socket
Type: 14098989
Composition: Central plate
Usage: UAE/IAE
Mounting ring: no
With dust protection: no
With flip cover: no
Outlet direction: angled
Labeling field: without labeling field
With print: no
Mounting type: flush-mounted
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: polar white
RAL number (similar): 9010
Transparent: no
Mounting type: screw mounting
Number of modules (in modular design): 2
With sockets/couplings: no
Suitable for number of sockets/couplings: 2
Isolated connections: no
With strain relief: no
Terminal block: no
With lighting: no
Suitable for protection class (IP): IP20
Impact resistance: IK02
Device width: 55 mm
Device height: 55 mm
Device depth: 16.6 mm
Min. depth of device box: 0 mm

The central piece for the UAE socket, double from the Berker switch program S.1/B.3/B.7 in glossy polar white, allows the connection of two RJ45 network plugs. It is compatible with CAT5e/CAT6 and supports structured cabling in buildings. The material is robust, and the glossy surface provides an appealing look. Easy installation in surface-mounted or flush-mounted configurations. Ideal for office buildings and modern living spaces. Suitable for dry rooms with IP20 rating.
